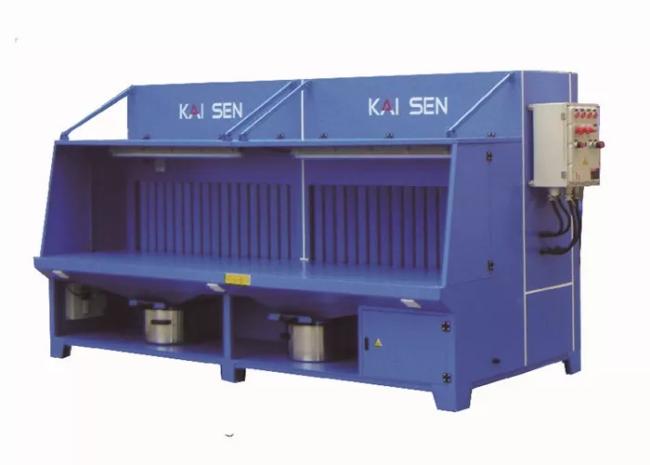

Dust Fume Downdraft Grinding Table
Dust Fume Downdraft Grinding Table
Product introduction
1. The grinding table with downdraft and rear wall spark and air fume extraction is a clean and safe solution for industrial use.
2. The grinding process of the workpiece is usually essential in the welding shop. For the grinding of workpiece before and after welding work, this product uses the international advanced filtering technology; filtration efficiency reaches 99.9% for welding, cutting and grinding, ensuring high air flow at the same time.
3. It also needs a grinding dust collector workbench with explosion-proof device for aluminum or alloy grinding process, we can provide the product them. And we have gained first explosion-proof inspection ertification in China.
Main features
1. CE and explosion-proof certification is available.
2. Worksize is 3340*855*700mm (LXWXH), the table is available in different sizes
3. Large air flow, Automatically cleaning, maintaining easy.
4. Safe working due to robust material support
5. Side walls can be folded away so also suitable for larger workpieces
Application: Industrial grinding of machined workpieces
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 11600±500 m3/h |
| 3 | Motor power | 11 kW |
| 4 | Power supply | 3×380 or 415V/50Hz |
| 5 | Filtration area | 90 m2 |
| 6 | Number of cartridge filters | 6 pieces |
| 7 | Filter medium | Nanometer fiber element |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve3 | 6 pieces |
| 10 | Compressed air | 5～6 bar |
| 11 | Ash hopper volume | 100L |
| 12 | Noise | ≤72±5dB(A) |
| 13 | Weight | 1700±20kg |
| 14 | Dimensions | 3400(L)×1535(W)×1895(H)mm |
