Self Cleaning 1.5Kw Inlet 150mm Dust Collection Equipment
Self-Cleaning 1.5Kw and 150 mm Inlet Dust Collector For Stone Laser Cutting And Steel Pipe Plasma Cutting Processing
Product Advantages
1. The structure of house is compact, reasonable and optimized.
2. Auto cleaning is convenient, it makes sure that the production process is continuous and high efficiency.
3. The dust bin is sealed, it is convenient to collect the dust and dismount the dust bucket.
4. PLC text screen controls operating system, it is convenient and automated.

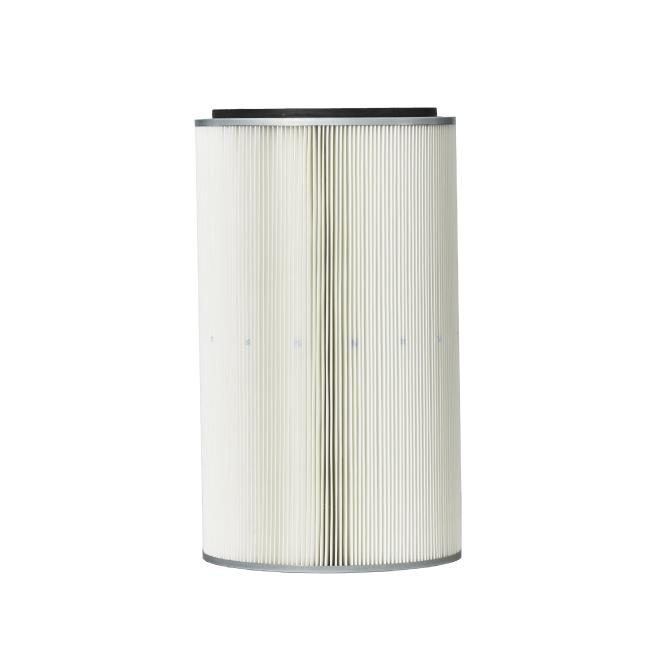

5. Selecting imported polyester material and adding PTFE on the surface of filtering medium, it comes true
high filtering precision and filtration efficiency of 99.9%.
6. CE and RoHS certification is available. The filter cartridge has the test report.
7. Application for small power laser metal and stone cutting dust, thin plasma steel pipe cutting fume.
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 2000±100 m3/h |
| 3 | Motor power | 1.5 kW |
| 4 | Power supply | 3×380 or 415V/50Hz |
| 5 | Filtration area | 20m2 |
| 6 | Number of cartridge filters | 2 pieces |
| 7 | Filter medium | Polyester + PTFE |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve | 2 pieces |
| 10 | Compressed air | 5～6 bar |
| 11 | Dust bin volume |
8 L |
| 12 | Noise | ≤75±5dB(A) |
| 13 | Weight | 225±10kg |
| 14 | Dimensions | 720(L)×700(W)×1750(H)mm |
