0.75Kw CE Certificated Industrial Dust Collector for Welding with 2 Meter Exhaust Pipe


ODM/OEM service is available.

Working Principle

The fume will be sucked into the extractor through the exhaust hose. Firstly, the fume passes the diversion device which could ramify the fume to avoid residual sparks enter into the filter layer directly. Then, 99.99% of the welding fumes & smoke generated from hthe welding processes will be removed by the filter effectively. As the exhausted air could reach the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.

when the pressure reaches the specified value, you need to connect the machine to a compressed air by air inlet to clean the filter.  Or you can also take out of filters from the front door, and clean it by using compressed air gun.

Product introduction

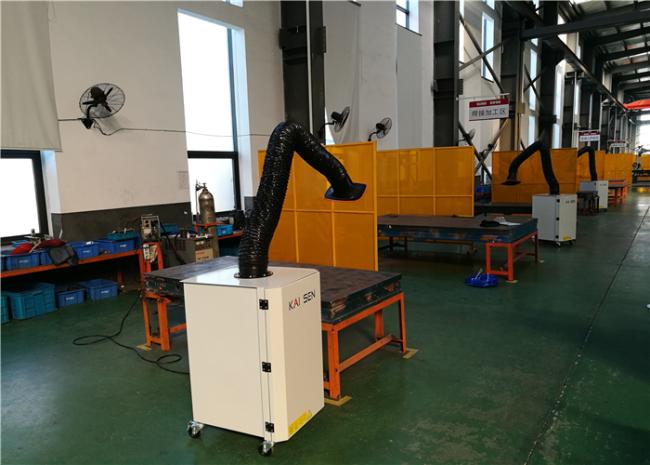

fume extractor is suitable for manual welding and small workpiece welding. It also uses in simple laser welding, engraving and new material processing, ect. It is very flexible using in most working area, especially when the work position is very dispersive.


Our welding fume extractors are permanent or portable, cost efficient, easy to integrate and reliable with a 2 year warranty.

• Weld fume removal
• Arc welding fume extraction
• TIG welding fumes
• MIG welding fumes
• Machine welding fumes

Machine Feature

1. Adopts high quality cold-rolled steel plate processing, key structural parts made by laser cutting and one shot punching forming.

2. Reasonable box structure, compact and practical.
3. A diversion device at the inlet to protect the filter from the damage of large particles.
4.  Filter adopts the high efficiency import PTFE coated polyester fiber, the filtration reach 99.9%.
5. Four casters at the bottom, two of them with active belt brakes, easy to move and fix position.

Standard Parameters
