380V 6 Bar 7.5KW 6500m³/H Laser Cutter Dust Collector
Laser Cutter Dust Collector Laser Fume Extractor
Function introduction
1. Central Control system implements real-time monitoring and analysis on a number of important parameter of equipments in the operation and show them in the display, and it has self-diagnosis function, showing abnormal and error conditions in the operation of the equipment automatically. The central dust & fume purification system' s performance is controlled by PLC controlling system.

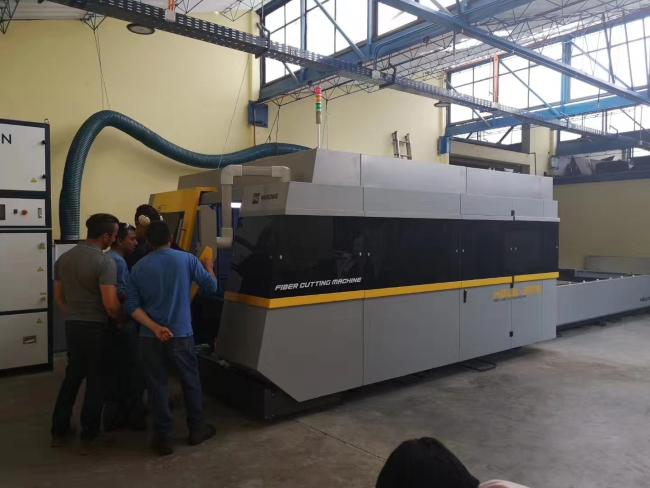

2. Central fume&dust purifier is a series product researched, developed and designed by the company based on the requirements of different site conditions.The structure of integrated units is designed to compact and reasonable. A complete series of specifications has been developed to meet the on-site different work-in-conditions, whether large-scale welding or grinding shop, or welding centers, robotic welding production lines, plasma, or laser cutting blanking production lines, you can find suitable product model.

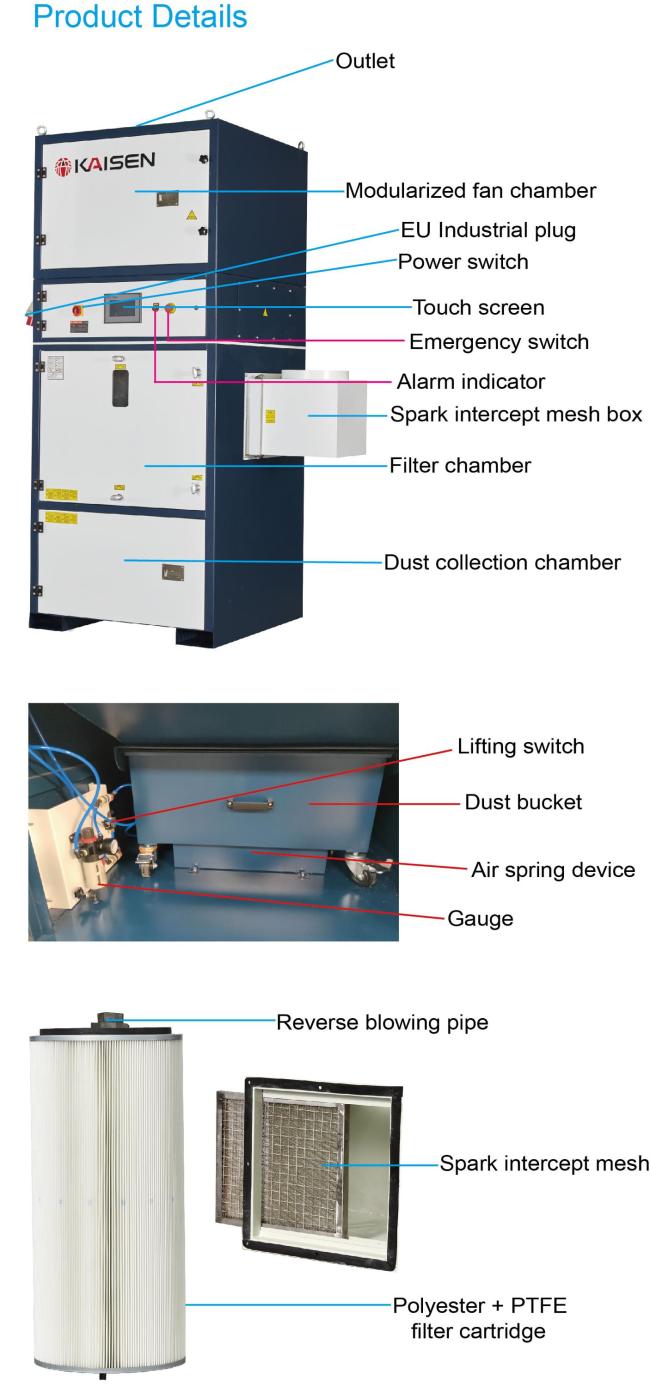

3. The functionality of a filter lies in the filter element's material, Kaisen's filter element is specially developed for the purification of fume and fine particles generated in welding and cutting, solved this industry's problem of low filtration precision and filter element's blocking. And the outer surface of the cartridge is covered by a layer of PTFE film layer through heat treatment a special process. Cartridge wall is thin in structure and has high strength, and the surface film layer has a very uniform pores, making a network structure with a bore diameter of 0.1 microns below.
4. Rotary dust blowing device is inserted inside the filter cartridge, and very close to the cartridge's inner wall. When the solenoid valve opens, compressed air enter into two pipes drilled with nozzles, implementing rotary blowing to clean every part of the filter cartridge. Compared with externally placed blowing nozzles, rotary dust blowing "nozzles" blow force is even on every part of the cartridge, and have a thorough cleaning, avoid big noise and damage to the cartridge caused by instant huge blow impact of the externally placed blowing method.
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 4500/6800±100 m3/h |
| 3 | Motor power | 5.5/7.5 kW |
| 4 | Power supply | 3×380 or 415V/50Hz |
| 5 | Filtration area | 60m2 |
| 6 | Number of cartridge filters | 4 pieces |
| 7 | Filter medium | PTFE coated filter element |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve | 4 pieces |
| 10 | Compressed air | 5～6 bar |
| 11 | Ash hopper volume | 25L |
| 12 | Noise | ≤72±5dB(A) |
| 13 | Weight | 730/750±20kg |
| 14 | Dimensions(excluding suction arm) | 1100(L)×1100(W)×2750(H)mm |
