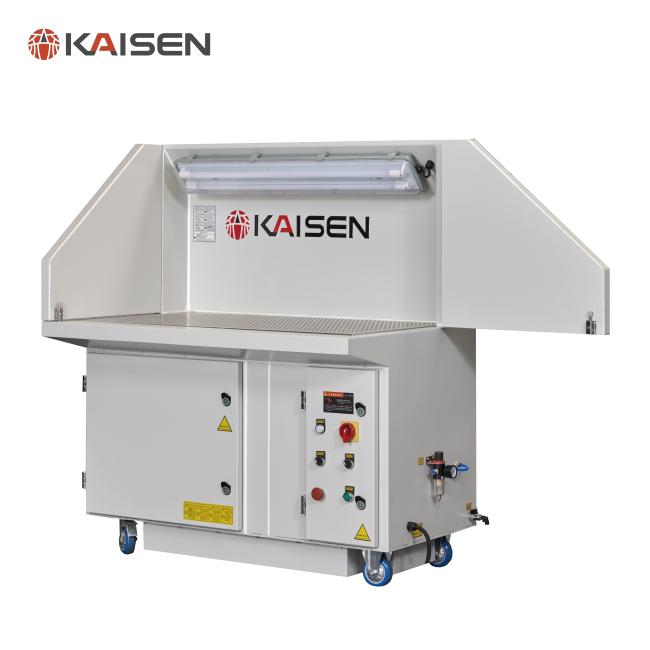

Polyester Filtering 6 Bar 16㎡ Downdraft Dust Collection Table
Ce Certificated Grinding/Polishing Dust Removal Downdraft Workbench
Product Application
Grinding table Downdraft Bench Dust Collector is a brushless motor dust removal equipment, with the advantages of large air volume and low noise. The built-in pulse back-blowing system of the machine can effectively prevent the blockage of the filter and greatly prolong the service life of the machine. It can inhale the fine dust produced in the grinding process. It is suitable for hardware grinding, marble grinding, wood polishing, automobile parts grinding and polishing, etc., where the dust is concentrated and large.
During grinding/polishing, the tool will cause a lot of metal dust, fiber dust, paint dust, ect. The dust is very light and large amount, pollute the working environment, cause lungs problems to workers and bring large loose for the manufacturer.
Grinding and Polishing downdraft extractor is a specialized fume extractor unit that uses workbench to collect fume. This system can suck fume from top side, bottom side, back side, left/right side.Accept customization.The solution safely and efficiently collects particles from applications such as grinding, sanding, metal/material cutting, and polishing.
Main features
1. CE and explosion-proof certification is available.
2. Worksize is 1100*650*800mm (LXWXH), the table is available in different sizes
3. Small air flow, semi-automatically cleaning, maintaining easy.
4. Safe working due to robust material support
5. Side walls can be folded away so also suitable for larger workpieces
6.Comfortable to work with thanks to the ergonomically adapted sheet steel construction
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 2600±100 m3/h |
| 3 | Motor power | 1.5kW |
| 4 | Power supply | 3×380 or 415V/50Hz |
| 5 | Filtration area | 16 m2 |
| 6 | Number of cartridge filters | 2 pieces |
| 7 | Filter medium | Nanometer fiber element |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve | 2 pieces |
| 10 | Compressed air | 5～6 bar |
| 11 | Ash hopper volume | 25 L |
| 12 | Noise | ≤75±5dB(A) |
| 13 | Weight | 290±15kg |
| 14 | Dimensions |
1200(L)×800(W)×1400H)mm |
What makes us special?
1.Patent design, CE, ISO9001, ISO14001, and OHSAS18001 certificate approved.
2.We also offer to fume dust filtration centralized treatment solution for whole of workshop. We have rich experience R&D engineer team that's can according to customer's requirement custom-made it .
3.Advanced patent design filter
4.We also offer OEM serivce.
5.2 years warranty on fan and motor, 1 years warranty on electric parts.
6. Manufacture directly sales, lower price, better services and easy maintance.
