3M DN160mm Suction Arm 1.5KW Welding Fume Extractor
Welding Fume Extractor, Industrial Dust Collector 1.5KW Power 220V With Ce Rosh KSJ-1.5B
Product Introduction
The basic structure of the equipment consists of the box, fan, filter element, suction arm, electrical control and other parts, The product is novel, beautiful and practical, stable in performance and convenient for use and maintenance. The suction arm can be rotated at 360 degrees, which is flexible and convenient, easy to approach the dust spot, and effectively ensures the cleanliness of the air. It is especially suitable for cleaning and dedusting in the welding workshop.
Depending on needs,3m, 4m flexible suction arm are available. Suction arm uses high temperature resistant, flame retardant and wearable composite material, it will not crack after burning through by spark and has a longer usage life. The diameter of suction arm is 160mm.
Through the attraction effect of fans, welding smoke exhaust gas can be absorbed into machine's air intake by universal vacuuming mask. Also, there is flame arrester on the machine air intake. Sparks can be blocked by the flame arrester and smoke gas comes into settlement room by means of gravity and upstream airflow. First thick dust will drop into ash hopper directly and fine particles will be trapped by filter core on the outer surface and clean gas will enter clean room after filtering and purifying by the filter core
As the filtering precision of the main filter cartridge reach the indoor emission standards, after filtration clean air can be directly discharged indoor through the air vent in the back of the extractor.
Our advantages
1. CE and RoHS approved
2. Export many years, 13 years manufacturing experience.
3. 24 months long warranty
4. Application for large fume working environment
5. Air flow adjustable
Technical parameters
|
No. |
Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 1500±100 m3/h |
| 3 | Motor power | 1.5 kW |
| 4 | Power supply | 3×380 or 415V/50Hz |
| 5 | Filtration area | 10 m2 |
| 6 | Number of cartridge filters | 1 piece |
| 7 | Filter medium | Polyester + PTFE |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve | 1 piece |
| 10 | Compressed air | 5～6 bar |
| 11 | Ash hopper volume | 12L |
| 12 | Noise | ≤74±5dB(A) |
| 13 | Weight | 154±5kg |
| 14 | Dimensions(excluding suction arm) | 650(L)×650(W)×1200(H)mm |
What we provide

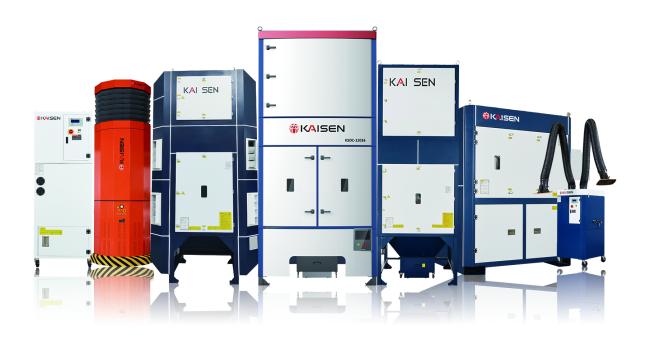

KAISEN produces a wide range industrial fume/dust extraction and collection equipments, such as mobile welding fume extractor,laser fume/dust collector,soldering fume extractor, mobile high vacuum fume extractor,central high vacuum fume extractor,self-circulation purifying tower,plasma cutting valve-type fume extraction system,central/downdraft grinding dust collector...etc. and other spare parts included.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
