Central Plasma Cutting Industrial Dust Extractor Auto Cleaning
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30 work days
Brand:
KAISEN
Product Description

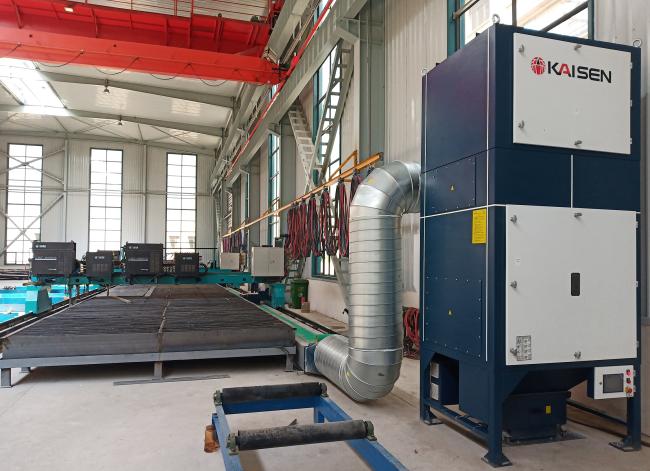

Industrial Plasma Cutting Central Fume Extraction With Remote Control
Technique Data
| Model | KSDC-12004 | KSDC-12006 | KSDC-12009 |
| Inlet Air Flow | 10000±500 m3/h | 12000/16000±500 m3/h | 18500/20000 m3/h |
| Motor Power | 11 kW | 11/15 kW | 18.5/22 kW |
| Working Voltage | 3x 380V/50Hz | 3x 380V/50Hz | 3x 380V/50Hz |
| Filtering Material | Polyester + PTFE | Polyester + PTFE | Polyester + PTFE |
| Filtering Area | 144 m² | 216 m² | 324 m² |
| Filtering Efficiency | >99.9% | >99.9% | >99.9% |
| Filter Cartridge | 4 PCS | 6 PCS | 9 PCS |
| Cleaning Way | Automatic Cleaning | Automatic Cleaning | Automatic Cleaning |
| Compressed Air | 0.5~0.6 MPa | 0.5~0.6 MPa | 0.5~0.6 MPa |
| Noise Level | ≤75±5 dB | ≤75±5 dB | ≤75±5 dB |
| Dimension(WxDxH) | 1160×960×3600 mm | 1160×1320×3600 mm | 1570×1320×3800 mm |
| Weight (kg) | 860±20 kg | 960/990±20 kg | 1780±20 kg |
Main Features
- Siemens PLC smart control system is easy to be operated, it checks status of machine operating real time.
- Touch screen operation supports multi-languages interface such as English, French and Russia.
- The filter element is imported high quality polyester material, the surface of filter medium coated PTFE, it makes filter cartridge high filtering precision and efficiency.
- Full-automatic cleaning system is easy to clean the dust on the surface of filter, it makes sure that the process of manufacturing is high efficiency and continuity.
- Adopting air spring device's lift to seal the dust bucket and hopper, it is easy to collect dust and move the dust bucket.
- Smart control system is available of optional frequency converter and remote on/off linage device.
