200W Soldering Fume Extractor Laser Marking Active Carbon Filter

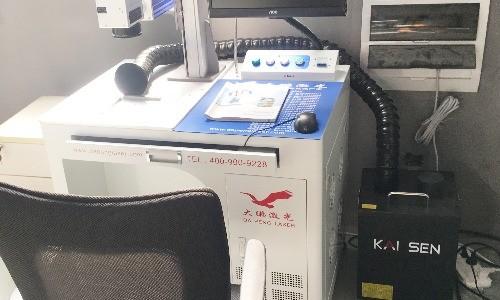

Laser Marking Active Carbon Filter Fume Extractor With One Arm Or Two Arms
Main features
1. Integrated design, convenient installation, flexible move, no pipes needed.
2. It adopts internal three layers filtering (including activated carbon filters) to ensure the filter more
accurate, get rid of smell stronger, extend the service life of filter materials. Reduce maintenance costs
during use.
3. Built-in way to avoid indoor air filtration cycle air conditioning / heating discharged to outside.
4. Multi-position design, air flow Adjustable, flexible suction arms adjust freely.Application for position of
iron welding,soldering oven, wave soldering, reflow oven. Laser welding, engraving, marking, cutting.
5. High-power brushless motor, long life, low noise, a high air flow.
Technical parameters
| NO. | Item | Parameter |
| 1 | Motor type | Centrifuged fan |
| 2 | Air flow | 260±10m3/h |
| 3 | Power | 0.20KW |
| 4 | Voltage & frequency | 220V/50Hz |
| 5 | Filtering area | 2㎡ |
| 6 | Filter layer | 3 layers |
| 7 | Filtering material | Glass fabric, active carbon |
| 8 | Filtering efficiency | 0.5um ,>95% |
| 9 | Noise | ≤65±5dB(A) |
| 10 | Suction arm | 2 pcs 1.2m φ75mm |
| 11 | Suction hood (optional) | φ355 mm ,Acrylic material |
| 12 | Weight | 14±2kg |
| 13 | Dimension | 308×308×420 mm |
