Mobile Welding Industrial Fume Extractor Dust Collector With One Suction Arm
Mobile Welding Fume Extractor/Dust Collector For Welding With One Suction Arm
Fume Extractor Product Introduction
Kaisen this series of welding fume extractor suitable for fume filtration and dust collection for different welding process. It has high filtration efficiency for dust collection and fume filtration for gas shield welding, argon arc welding, MMA and brazing, and other small fume amount working condition.
Welding fume extractor is a moveable filtration system with internally installed filter. It is a necessary equipment for metal processing to clean the welding fume and dust.

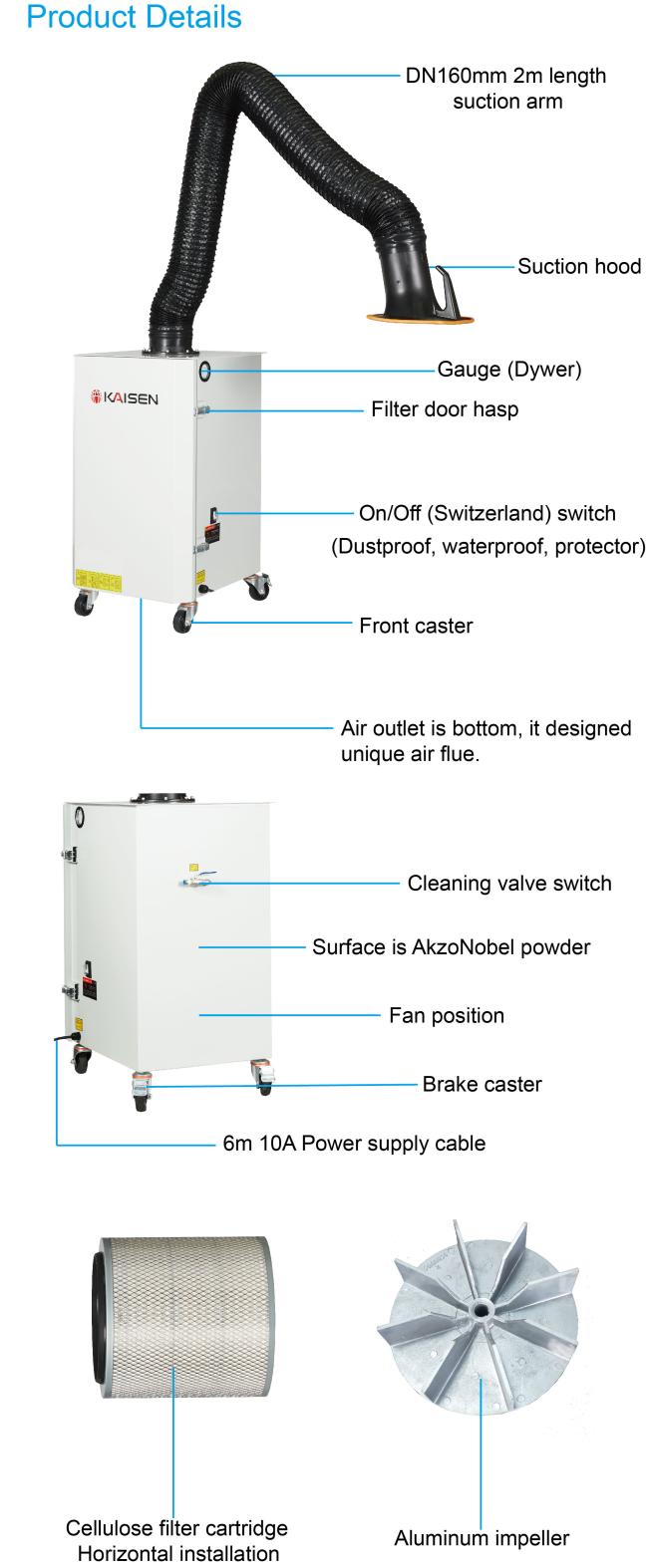

Dust Collector Main Features
1. Reasonable structure, compact and practical.
2. Nano flame retardant filter material, large filtration area and high flitration percision.
3. φ160mm, 2m length suction arm, 360° rotated flexibility, wide range of novenebt.
4. Equipped with all-direction caster wheels, movable freely and easy to position.
5. Large air flow, low noise, low energy consumption.
6. Equipped with overcurrent and overload protection, safety and reliable.
7. Smoke can be removed from the place where the smoke generate, greatly increasing the collection rate of the dust, capturing the dust at the source directly, complete in one step.
Standard Parameters
| Item | KSJ-0.7S | KSJ-2.2S |
| Fan Type | Centrifugal fan | Centrifugal fan |
| Fan Air Flow | 2000±100m³/h | 3600±100m³/h |
| Treatment Of Air Flow | 1000±100m³/h | 2000m³/h |
| Motor Power | 0.75/1.1kW | 2.2kW |
| Power Supply | 220V/50Hz or 115V/60Hz |
3×380V/50Hz or 3×220V/60Hz |
| Filtration Area | 15㎡ | 30㎡ |
| Filter Cartridge | 1 PC | 1 PC |
| Filter Material | Nanometer Fiber | Nanometer Fiber |
| Filtration Efficiency | ≥99%, ≥0.3um | ≥99.9%, ≥0.3um |
| Noise | ≤74±5dB(A) | ≤74±5dB(A) |
| Suction Arm | φ160mm, 2m length, 1 piece | φ160mm, 3m length, 2 pieces |
| Weight(excluding suction arm) | 98±5KGS | 135±5KGS |
| Dimensions(excluding suction arm) | 510×610×990mm | 640×760×1320mm |
Application
1. Suitable for small amount of fume and dust
2. TIG, MIG carbon steel welding
3. One welding station
4. MMA and brazing etc.
5. Argon arc welding
Company Introduction
Shanghai Kaisen Environmental Technology Co., Ltd. has been committed to the design, research & development, and manufacture about industrial air filtration products over decades.
Kaisen's products are widely used in smoke and dust control in many industries such as lithium battery and new materials, construction machinery, automobile manufacturing, marine engineering, iron and steel metallurgy, aerospace and other industries.
