NBR Spring Energized Seals , Mechanical Shaft Seal Ring Wear Resistance
NBR Oil Seal/ shaft seal, FB 50*70*10 black oil seals, Auto FKM oil seals, double lip oil seal
oil seal application
(1) Seal the engine crankshaft and camshaft;
(2) Seal the rotational system (Gear box, hub, axle and differential mechanism) of car, motorcycle and commercial vehicle;
(3) Seal the rotational system of farm machinery and Construction machinery like forklift, excavator and etc;
(4) Seal the industrial gear box;
(5) Seal the hydraulic component (Pump and motor);
(6) Seal the daily washing machine;
(7) Widely used in Mechanical Engineering and Equipment processing industry.
Product Overview

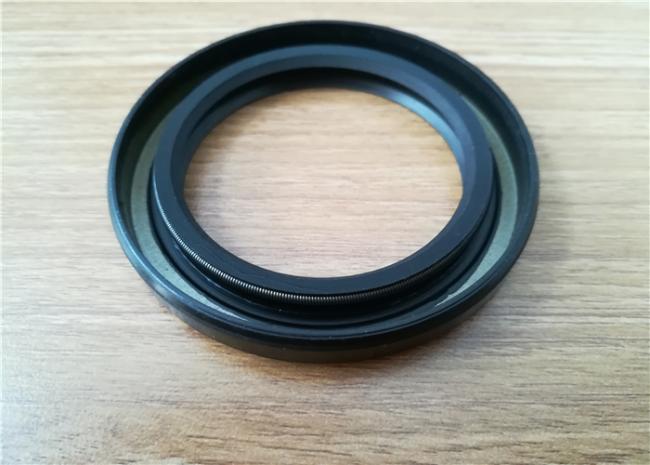

| Description | FB 50*70*10 rubber oil seal |
| Material | NBR, FKM, Silicone, EPDM, Metal, Metal bonded oil seals |
| Hardness | Shore 20-90 A |
| Types | B FB BV W FW Z FZ SR DL NY |
| Color | Black, etc |
| Application | 1. Fluid system (static & dynamic) 2. Hydraulic system (dynamic) 3. Pneumatic system (dynamic) 4. Oil or grease media sealing 5. Water media sealing 6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers, exercise equipment. |
| Temperature | 40℃ ~ +220℃ |
| Brand |
custom's brand |
| Size | Custom Size or stand size |
| Sping | spring loaded |
| Paking | plastic bags inside and carton boxes outside |
| Other oil seal products | TB oil seal, SB oil seals, SC oil seal, SB oil seals, VC oil seals, VB oil seals, NBR oil seal, FKM/ oil seals, HNBR oil seal, Rubber oil seal, Food grade silicone rubber oil seal, CFW rubber oil seal, Metal oil seal, PTFE oil seal, PU oil seal, ACM oil seal, CR oil seal, Felt oil seal, Inch oil seal, EPDM oil seal, etc. |
Common types of oil seals
| Type | Shaft Movement | Features | Main Applications |
|---|---|---|---|
| FB | Rotate | Double lips, inner metalcased. | For sealing medium and tiny dust operating conditions. |
| S or B | Rotate | Single lip, inner metalcased. | For oneside sealing medium and no dust operating conditions( Max. Pressure 0.03Mpa) |
| OS | Rotate |
Single lip,outer metalcased.Good stiffness, good heat distribution and good coaxiality. |
For sealing medium and no dust operating conditions(Pressure Max.0.03Mpa). |
| zs | Rotate | Single lip, assembled seal withmetalcase. Good stiffness, good heat distribution and good coaxiality. |
Used in Sealing oil and water, no dust. Higher pressure resistance than general oil seal. |
| OD | Rotate | Double lips, Outer metalcased. | For sealing medium and tiny dust operating conditions. |
| ZD | Rotate | Double lips, assembled seal. Good stiffness, good heat distribution and good concentricity of inner and outer diameters. |
Used in Sealing oil and water, no dust. Higher pressure resistance than general oil seal. |
| WPS | Rotate | Single lip, inner Outer undulatory surface for easy installation and better sealing. |
Same as Type S and B. Widely used in lightalloy and split housing. |
FAQ
1. How to produce?
we can produce according to seal type and sizes .
if you need some customized parts, we can produce according to drawing and samples .
2. How to deliver ?
for small order, we will deliver by express, such as DHL, FEDEX, UPS,TNT.etc
for large order , we can deliver by air or by ship.
3. Are you a trading company or a manufacturer ?
We are professional manufacturer of various types oil seals, oil seals, o rings, gaksets, rubber parts and other rubber, plastic, metal sealing products. Welcome to our factory.
4. Do you provide samples ? is it free or extra ?
We can supply you free samples without extra charges, but express cost is for buyer's account.
5. How is the quality?
Strict control when production, 100% inspection before shipment.
