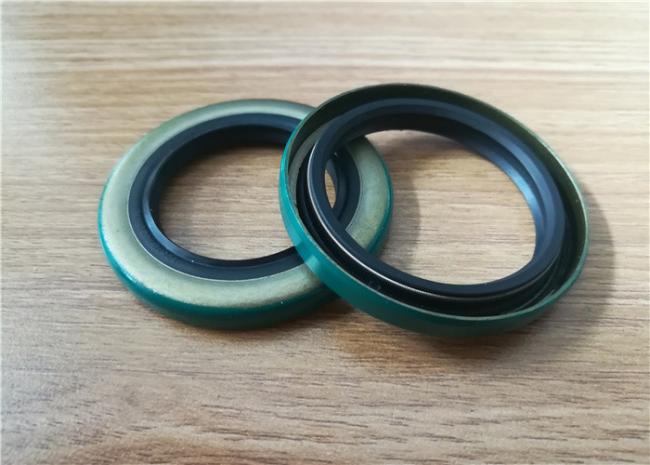

Standard Size Oil Lip Seal TB / TC Style Abrasion / Dust Resistance
double lips tb, tc oil seal, NBR Silicone FKM Double Lip Skeleton Oil Seals, oil lip seals
Oil Seal Brief Introduction
Oil seal is one kind of machine element, called Rotating Shaft Seal. Rotating Shaft Seals are used between rotating and nonrotating machine components, to prevent oil leakage. With the development of mechanics, in order to prevent water or chemical liquid and dust and soil, except for oil, to enter inner, oil seal is used in these situations. The equipments with sealing function, besides oil seal, include orings,
liptype ring, and machine seal. But the most popular one is Rotating Seal for the Rotating shaft sealing.
Product Description
| Product name | double lips tb, tc oil seal |
| Material | NBR, HNBR, PTFE, EPDM, PU, NYLON |
| Hardness | 20 ~ 90 shore A |
| Type | TC, TB, TA, SC, SB, SA, VC, VB, VA, KC, KB, KA, DC etc. |
| Color | Red orange yellow green blue black white |
| Property | oil-resistant; high/ low temperature resistant; dust resistant |
| Packing | Inner packing: Plastic bag Outer packing: Carton box |
| Size | Standard and non- standard sizes are available |
| Port | Qingdao, etc |
Main Rubber Compounds and Thermoplastic Elastomers
| Material | Oil resistance | Wear resistance | Low temperature | High temperature | Acid resistance | Weather resistance |
|---|---|---|---|---|---|---|
| NBR | Very good | Very good | -40 | +125 | Good | Moderate |
| ACM | Very good | Very good | -25 | +150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | +250 | Good | Very good |
| EPDM | Moderate | Good | -40 | +125 | Good | Very good |
| PTFE | Very good | Very good | -65 | +260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | +100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | +160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | +140 | good | good |
| VMQ | Good | Good | -60 | +225 | Moderate |
Very good
|
Our advantage
1. Available material: NBR, HNBR, EPDM, ACM, Silicone, (FKM), etc. Wide range of material is available.
2. All manufacturing processes confirm to the ISO-9001:2000 system, ISO/TS 16949.
3. Excellent chemical and physical property, excellent in oil resistant, high/low temperature-resistant, wearing-resistant, oil-resistant, dust-resistant.
4. Custom: design and manufacture complete sets of rubber parts based on customer's requirements, any specification is welcome according to your requirements.
5. Available in various sizes and colors.
6. State standard and non-state standard sizes available.
