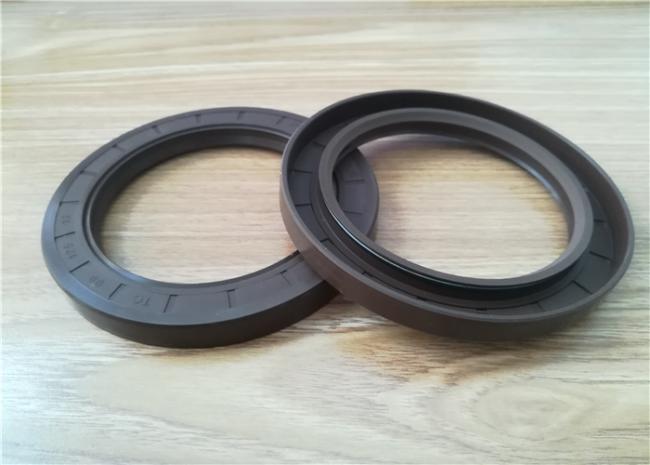

NBR Double Oil Lip Seal TC Type For Automotive 90*125*13 Heat Resistance
TC oil seal 90*125*13, TC double lip oil seals, NBR, Silicone, FKM, PTFE, MVQ, NR rubber oil sea
oil seal
Oil Seals are used to exclude water, Dirt, Dust or any other substances from a rotating bearing whilst maintaining lubrication.
An oil seal normally consists of three basic components: The Sealing Element (the nitrile rubber part), the Metal Case, and the Spring. It is a widely used sealing component. The function of a seal is to prevent the leakage of medium along the moving parts. This is mainly achieved by the sealing element. Nitrile Rubber (NBR)
NBR is the most commonly used seal material. It has good heat resistance properties, good resistance to oils, salt solutions, hydraulic oils, and gasoline. Operation temperatures are recommended from -40deg C to 120deg C. It also functions well under dry environment, but only for intermittent periods.
Product Overview
| Description | lip rotary shaft oil seal |
| Material | NBR, HNBR, EPDM, NR, , EPDM, PU etc |
| Hardness | Shore 20-90 A or as customized |
| Types | TC, TB, TA, SC, SB, SA, VC, VB, VA, KC, KB, KA, DC, DB etc |
| Color | Black, brown, red or assigned color |
| Performance requirements | Oil-resistant; heat resistant; abrasion-resistant; aging resistant; insulation; acid and alkaline resistant; airtight; shock absorption, etc. |
| Temperature | -60℃ ~ +220℃ |
| Application |
automobile , motocycles , agricultural machinery , trucks , buses , trailers and exercise equipments. |
| Size | Custom Size or stand size |
| Spring | single spring loaded |
| Paking | plastic bags inside & carton boxes outside |
Common types of oil seals
|
Type |
Shaft Movement |
Features |
Main Applications |
|---|---|---|---|
| FB | Rotate | Double lips, inner metalcased. | For sealing medium and tiny dust operating conditions. |
| S or B | Rotate | Single lip, inner metalcased. | For oneside sealing medium and no dust operating conditions( Max. Pressure 0.03Mpa) |
| OS | Rotate |
Single lip,outer metalcased.Good stiffness, good heat distribution and good coaxiality. |
For sealing medium and no dust operating conditions(Pressure Max.0.03Mpa). |
| zs | Rotate | Single lip, assembled seal withmetalcase. Good stiffness, good heat distribution and good coaxiality. |
Used in Sealing oil and water, no dust. Higher pressure resistance than general oil seal. |
| OD | Rotate | Double lips, Outer metalcased. | For sealing medium and tiny dust operating conditions. |
| ZD | Rotate | Double lips, assembled seal. Good stiffness, good heat distribution and good concentricity of inner and outer diameters. |
Used in Sealing oil and water, no dust. Higher pressure resistance than general oil seal. |
| WPS | Rotate | Single lip, inner Outer undulatory surface for easy installation and better sealing. |
Same as Type S and B. Widely used in lightalloy and split housing. |
FAQ
1. How to produce?
we can produce according to seal type and sizes .
if you need some customized parts, we can produce according to drawing and samples .
2. How to deliver ?
for small order, we will deliver by express, such as DHL, FEDEX, UPS,TNT.etc
for large order , we can deliver by air or by ship.
3. Are you a trading company or a manufacturer ?
We are professional manufacturer of various types oil seals, oil seals, o rings, gaksets, rubber parts and other rubber, plastic, metal sealing products. Welcome to our factory.
4. Do you provide samples ? is it free or extra ?
We can supply you free samples without extra charges, but express cost is for buyer's account.
5. How is the quality?
Strict control when production, 100% inspection before shipment.
