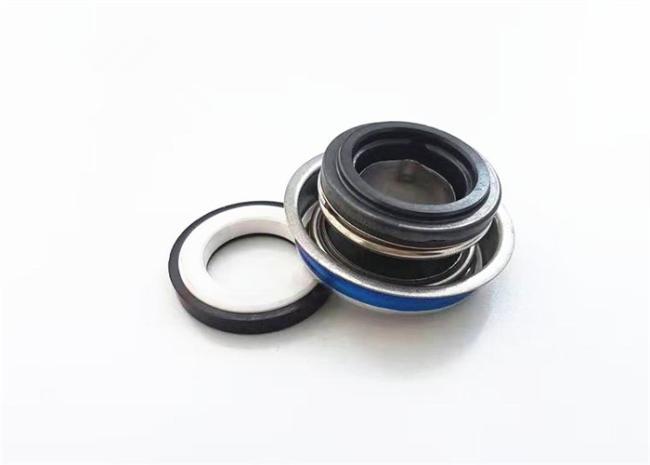

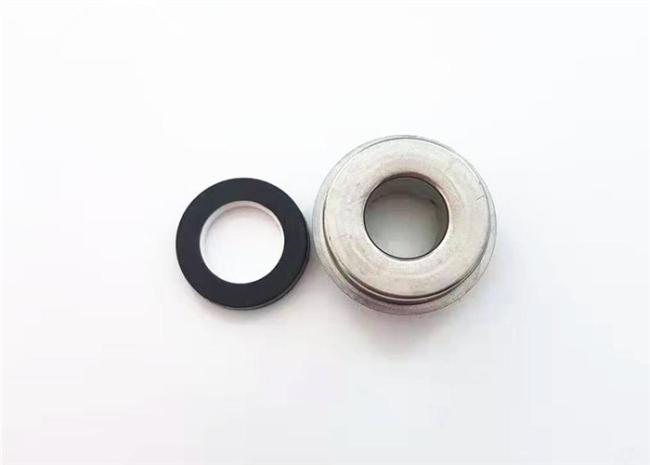

Single Face Mechanical Shaft Seal Standard Size Oil Resistance ISOTS16949
Single Face Mechanical Shaft Seal Standard Size Oil Resistance ISOTS16949
Product Description
| Product name103 | Mechanical Seal WMF Model |
| Work temperature | -30°C to 150°C, depend on the elastomer |
| Model | WMF |
| Stationary Ring | Plastic Carbon/Carbon/SiC |
| Secondary Seal | NBR, Epdm, HNBR, |
| Liner speed | ≤5m/s |
| Pressure | ≤0.3Mpa |
| Feature |
Single and dual seal
Short axial installation length
Protection of the shaft along the whole length of the seal
Material approvals available |
| Application | Pumps or Others |
| Color | as request |
| Medium | Clean water, seawater, gas engine antifreeze |
| Type | Verious |
| Port | Qingdao, etc |
Operating limits
1.Size:10~40mm
2.Pressure:≤1.0Mpa
3.Temperature:-30℃~200℃
4.Speed:≤15m/s
Combination of materials
1.Sealing face:Carbon,SIC,TC
2.Secondary sealing:NBR,,EPDM
3.Metal component:ss304,ss316
| model | SHAFT | D1 | D2 | D3 | D5 | D7 | L1 | L3 | L4 |
| WM F-10 | 10 | 11 | 24 | 29 | 12 | 23 | 17 | 4 | 7 |
| WM F-12S | 12 | 14.2 | 28.55 | 32 | 14 | 25 | 18.2 | 5 | 8 |
| WM F-12M | 12 | 14.2 | 30 | 35 | 15 | 24/23 | 18 | 5 | 8 |
| WM F-12L | 12 | 14.2 | 33.4 | 38 | 14 | 25 | 18 | 5 | 6.7 |
| WM F-16 | 16 | 18.2 | 36.45 | 41.5 | 18 | 31 | 19.8 | 5 | 8 |
| WM F-16L | 16 | 18.2 | 38.1 | 43.5 | 18 | 31 | 19.8 | 5 | 8 |
| WM F-16LD | 16 | 18.2 | 38.1 | 43.5 | 18 | 31 | 19.8 | 5 | 8 |
| WM F-20S | 20 | 21.2 | 40 | 43.8 | 21 | 35 | 20.5 | 5 | 9.5 |
| WM F-20 | 20 | 21.2 | 46 | 43.8 | 21 | 35 | 20.5 | 5 | 9.5 |
| WM F-25S | 25 | 26.4 | 47 | 51 | 26 | 44 | 25 | 8.5/7 | 10 |
| WM F-25 | 25 | 26.4 | 52 | 51 | 26 | 44 | 25 | 8.5/7 | 12 |
| WM F-25L | 25 | 26.4 | 52 | 57 | 27 | 48 | 25 | 8.5/7 | 12 |
| WM F-30 | 30 | 31 | 52 | 57 | 32 | 48 | 27 | 8.5 | 11 |
| WM F-1/2" | 12.7 | 14.2 | 30 | 35 | 13.5 | 25.4 | 19.2 | 6.2 | 8 |
| WM F-5/8" | 15.875 | 18 | 36.45 | 41.5 | 17.5 | 31.75 | 25 | 10.3 | 8.5 |
| WM F-3/4" | 19.05 | 18.2 | 40 | 43.8 | 20 | 34.925 | 25.8 | 10.3 | 9.5 |
| WM F-1" | 25.4 | 26.4 | 47 | 51 | 27 | 41.275 | 29 | 11.1 | 12 |
FAQ
1. How to produce ?
we can produce according to seal type and sizes .
if you need some customized parts, we can produce according to drawing and samples.
2How to make the order?
You can send us email or inquiry at alibaba directly.
3. What is your main market?
Our main market is north America, UK, Australia, Middle East , Europe.
4.Do you provide samples ? is it free or extra
We can supply you free samples without extra charges, but express cost is for buyer's account.
5.How is the quality?
Strict control when production, 100% inspection before shipment.
6.Do you provide samples ? is it free or extra ?
Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
