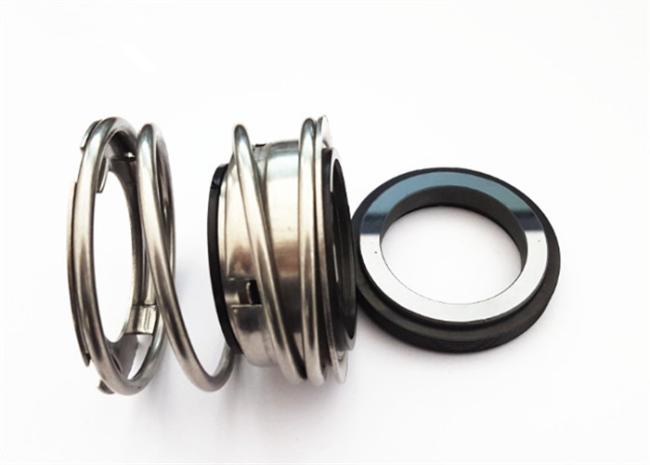

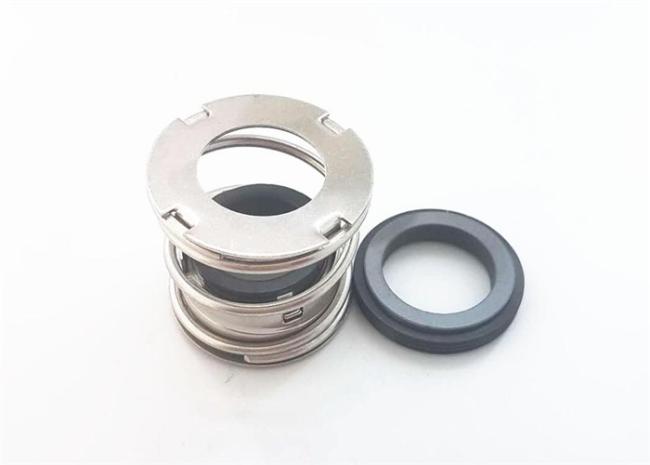

Oil Resistance Mechanical Shaft Seal Short Axial Installation Length For Water Pump
Product Description
| Product name | mechanical seal FBD |
| Work temperature | -40°C to 150°C |
| Model | FBD-35 |
| Sealing Face | graphite,silicone carbide,tungsten carbide,aluminum oxide,stainless steel |
| Secondary Seal | acrylonitrile rubber,fluorine rubber,ethylene propylene rubber |
| Metal component | stainless steel |
| Liner speed | ≤5m/s |
| Pressure | ≤0.3Mpa |
| Feature |
Single and dual seal
Short axial installation length
Protection of the shaft along the whole length of the seal
Material approvals available |
| Application | Pumps or Others |
| Color | as request |
| Medium | Clean water, seawater, gas engine antifreeze |
| Type | Verious |
| Port | Qingdao, etc |
Has the following characteristics:
1. the sealing performance is good. In the long-term operation, the sealing state is stable and the leakage amount is small.
2. No adjustment during operation. Suitable for continuous, automated production.
3.long service life. Generally it can be used continuously for 1-2 years, and special can be used for 5-10 years.
Operating limits:
Pressure in the sealed chamber:≤1.2MPa
Temperature in the sealed chamber:-20℃~150℃(NBR)
Linear velocity:≤10m/sec
FBD mechanical seal series is uneasy to be blocked due to its single spring struture.it has advanced rotating ring floatability so that reduced compensational resistance.this series is suitable for oil,water and other weak corrosive medium.
FAQ
1. How to produce ?
we can produce according to seal type and sizes .
if you need some customized parts, we can produce according to drawing and samples.
2How to make the order?
You can send us email or inquiry at alibaba directly.
3. What is your main market?
Our main market is north America, UK, Australia, Middle East , Europe.
4.Do you provide samples ? is it free or extra
We can supply you free samples without extra charges, but express cost is for buyer's account.
5.How is the quality?
Strict control when production, 100% inspection before shipment.
6.Do you provide samples ? is it free or extra ?
Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
