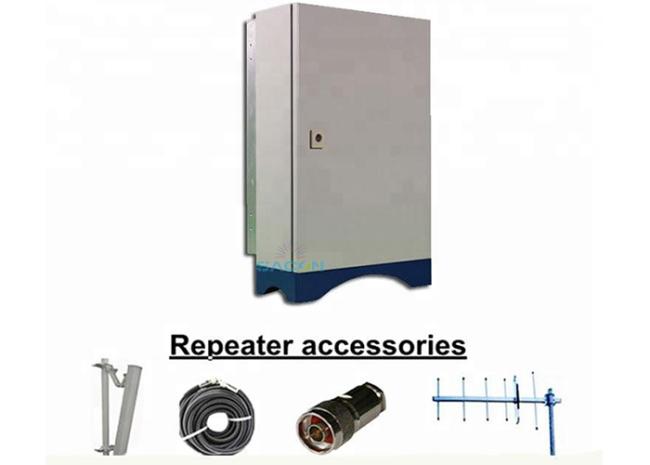

Outdoor Mobile Signal Repeater 20w 4G 2600MHz 95dB High Gain For Village
20w 4G 2600MHz Outdoor Mobile Signal Repeater 95dB High Gain For Village
Description:
4G / Lte in-building Cell Booster / Amplifier Cell Booster 4G Lte Amplifier Repeater 2600 is designed to solve problems of wak mobile signal, which is much cheaper than adding a new base station (BTS). Main operation of the repeaters are to receive lower-power signal from BTS via RF transmission and then transmit the amplified signal to the areas where network coverage is inadequate.And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
Main Features:
1, Output Power +43dBm for large coverage application;
2, High working gain as Min. 95dB;
3, Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
4, RS232 ports provide links to laptop for local setting and monitoring by built in web interface;
5, Built in wireless modem (Option) for remote monitoring by SMS or GPRS;
6, Details repeater parameters and status can be monitoring by Control Panel, such as temperature, output power level, gain, ATT, return loss, VSWR etc;
7, Support upgrading firmware remotely by GPRS;
8, High gain linear power amplifier technique with reliable performance;
9, Weatherproof design for all-weather installation ;
Technical Specification:
| Items | Testing Condition | Specification | MEMO | |||
| Uplink | Downlink | |||||
| Working Frequency(MHz) | Nominal Frequency | 2500 – 2570 MHz | 2620 – 2690 MHz | LTE | ||
| Gain(dB) | Nominal Output Power-5dB | 95±3 | ||||
| Output Power (dBm) | GSM modulating signal | 37 | 43 | |||
| ALC (dBm) | Input Signal add 20dB | Po≤±1 | ||||
| Noise Figure (dB) | Working in-band(Max. Gain) | ≤5 | ||||
| Ripple in-band (dB) | Nominal Output Power -5dB | ≤3 | ||||
| Frequency Tolerance (ppm) | Nominal Output Power | ≤0.05 | ||||
| Time Delay (us) | Working in-band | ≤5 | ||||
| ACLR | Working in-band | Compatible with 3GPP TS 36.143 and 3GPP TS 36.106 | For LTE, PAR=8 | |||
| Spectrum Mask | Working in-band | Compatible with 3GPP TS 36.143 and 3GPP TS 36.106 | For LTE, PAR=8 | |||
| Gain Adjustment Step (dB) | Nominal Output Power -5dB | 1dB | ||||
| Gain Adjustment Range(dB) | Nominal Output Power -5dB | ≥30 | ||||
| Gain Adjustable Linear(dB) | 10dB | Nominal Output Power -5dB | ±1.0 | |||
| 20dB | Nominal Output Power -5dB | ±1.0 | ||||
| 30dB | Nominal Output Power -5dB | ±1.5 | ||||
| Spurious Emission(dBm) | 9kHz-1GHz | BW:30KHz | ≤-36 | ≤-36 | ||
| 1GHz-12.75GHz | BW:30KHz | ≤-30 | ≤-30 | |||
| VSWR | BS/MS Port | 1.5 | ||||
| I/O Port | N-Female | |||||
| Impedance | 50ohm | |||||
| Operating Temperature | -25°C ~+55°C | |||||
Application:
- To expand signal coverage of fill signal blind area where signal is weak
- or unavailable.
- Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
- Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc. It is mainly applicable to such case:
- The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than -70dBm;
- And can meet the requirement of antenna isolation to avoid self oscillation.
Packing Details:
