Pneumatic 200-1000CPS Polyurethane Spray Machine Exterior Wall Insulation
RX700 Pneumatic Polyurethane Spray Machine 25Mpa For Exterior Wall Insulation
Polyurethane Spray Foam machines, also commonly referred to as proportioners, are highly sophisticated pieces of spray foam equipment. For many Spray Polyurethane Foam (SPF) insulation and roofing businesses, polyurethane spray foam machines serve as the backbone of the job site. In fact, a spray foam machine is a vital piece of machinery and one that is essential to efficient operations.
Polyurethane spray foam machines separate two fast reacting spray foam components and then dispense the mixed chemicals in the proper ratio. This process is critical to the proper application of spray foam.
Spec:
| Name | RX700 Pneumatic Polyurethane Spray Machine |
| The ratio of raw material | 1:1 |
| Viscosity range of raw material | 200-1000CPS(under working temperature) |
| Max working pressure | 22Mpa (220bar) |
| Max fluid temperature | 0-80°C (176°F) |
| Max output | 2-12kg/min |
| Heater power | 4500W×2 |
| Drive model | Full pneumatic |
| Pipeline insulation heating power | 3000W |
| Voltage (Optional) | 1-ph 220V 50Hz or 3-ph 380V 50Hz |
| Pneumatic source | 0.5-0.8Mpa 1m³/min (73-116psi 35 cu ft) |
| Machine Weight | 165KG |
| Machine Size | 650*600*1000mm |
| Standard Configuration: | |
| Mainframe | 1 set |
| Spray gun | 1 pc |
| Transfer pump | 2 pcs |
| Heated hose (Standard) | 15m (50ft) |
| Max hose length (Optional) | 90m |
| Transfer pump hose | 2 pcs |
| Air pipe | 1 set |
| Spare parts and tools | 1 set |
| Transport Parameter: | |
| Package size (L×W×H) | 820*820*1450mm |
| Net weight/Gross weight | 165KG/245KG |

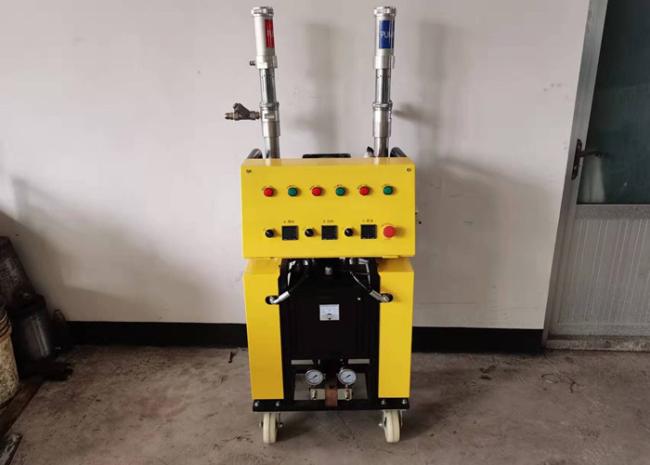

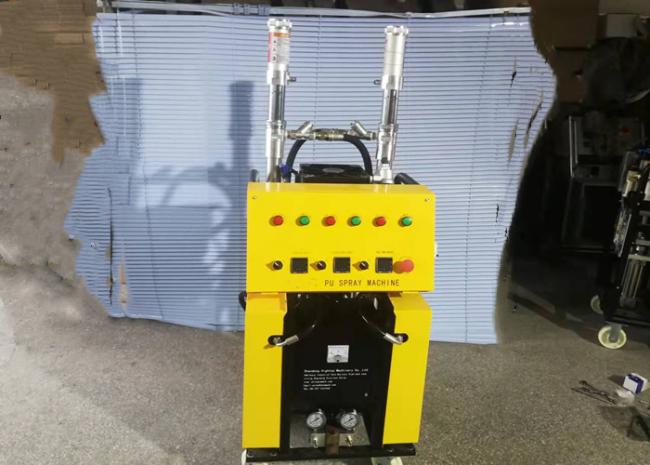

Picture:
