Italy Type Pneumatic Oil Pump Suction Tube Diameter 39mm High Strength Materials
Smart 5 / 1 Pneumatic Motor And Synthetic Oil Transfer Pump,suction tube length 940mm for 200kg drum
Feature
(1) the pumping action and pumping into two independent system, compressed air will not pollute the barrel of oil.
(2) using the range typical for factories, auto repair factory, ship maintenance, mining, machinery, agriculture, military, architecture, public transportation.
(3) the use of pneumatic pump, without power, can be used in flammable goods place, such as: gas station, garage and other places.
(4) the pump body is made of high strength aluminum alloy forging.
Oil usage
(1) is applied to extract the 0#~120# oil, and generally non-aggressive solvent.
(2) if you want to know the added quantity of the oil, and suggestions to buy flow meter use. (model: M101, M201 a total of two kinds of reference)
Spec:
| Item name | professional manufacture of air oil pump |
| Model | 46095 |
| Pressure ratio | 5:1 |
| Pressuer air | 0.4-0.7Mpa |
| Head pressure | 30Mpa |
| Oil feeding rate | 0-18L/min |
| Material | Carbon steel, Aluminum, chrome (stainless steel, option) |
| Suction tube diameter | 39mm; Suitable for use with oils to 120 SAE |
| Suction tube length | 270(740,940)mm |
| Port | Shanghai |
| Package | carton box |
| Delivery time | Shipped in 7 days after payment |

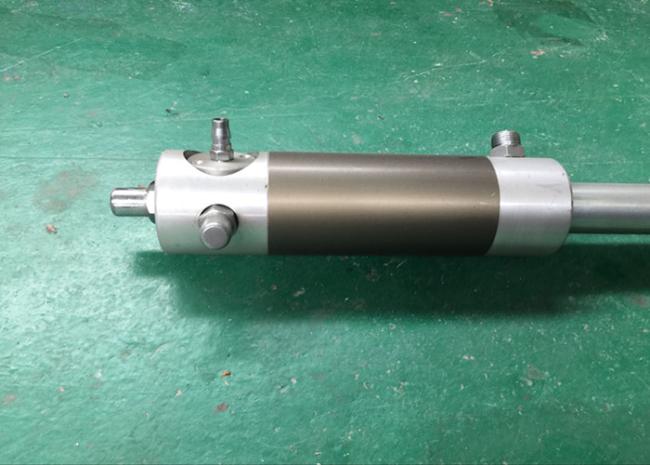

Picture:
