304SS 2 Ball Piston Oil Drum Spray Foam Transfer Pumps 0-20L/Min
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
2- 3 working days
Brand:
RongXing
Product Description
RX-56092S Ratio 2:1 Spray Foam Transfer Pumps, Pump Body 304SS Air Drum Transfer Pumps
Spec:
| Item Name | RX-56092S Ratio 2:1 Spray Foam Transfer Pumps, Pump Body 304SS Air Drum Transfer Pumps |
|
Model
|
RX-56092S |
| Pressure Ratio | 2:1 |
|
Pump Bbody Main material
|
304SS Stainless Steel |
|
Air pressure
|
0.3-0.8Mpa |
| Quantity | Usually 2 pieces in one package |
| Air Inlet Port | G1/4" |
| Fluid outlet Port | G3/4" |
|
Liquid feeding capacity
|
0-20L/min |
|
Gross weight(2 Pieces)
|
18KG |
| Packing size | 1400*180*180mm |
| Max environment Temp | 50℃ |
| Max liquid Temp | 88℃ |
| Suction tube length | 880mm(length could custom) |
| Port | Shanghai |
| Package | carton box |
| Delivery time | Shipped in 3-7 days after payment |
RX5609S (2:1 RATIO) TRANSFER PUMP
Air Operated Fluid Pump which is specially designed for corrosive materials.
FEATURES
- Fully air operated.
- 2 ball piston design provides uniform positive displacement.
- Extremely durable pump with long life packing.
- Specially designed piston seals do not come into contact with material pumped. Hence, a longer life span as it is able to handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.
TYPICAL APPLICATIONS
- For standard 55 gallons steel drum
- Foam chemical supply
- Spray gun supply
- Dispensing valve supply
- Cleaning chemical supply
- Fluid transfer
TYPICAL FLUIDS HANDLED
- Solvent based paints
- Solvents
- Cleaning chemical supply
- Chemicals
- Catalysts
- Isocyanates
- Adhesives
- Resins
- Polyurethanes
- Polyureas

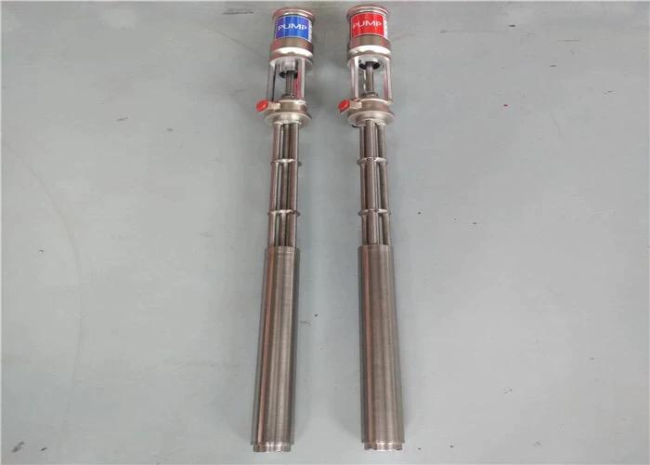

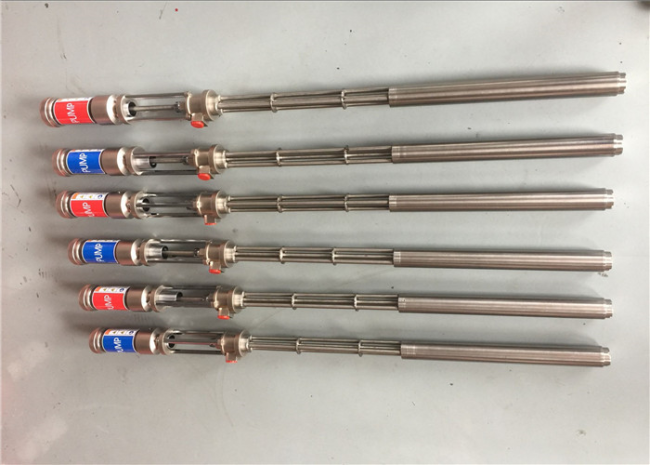

Pictures:
