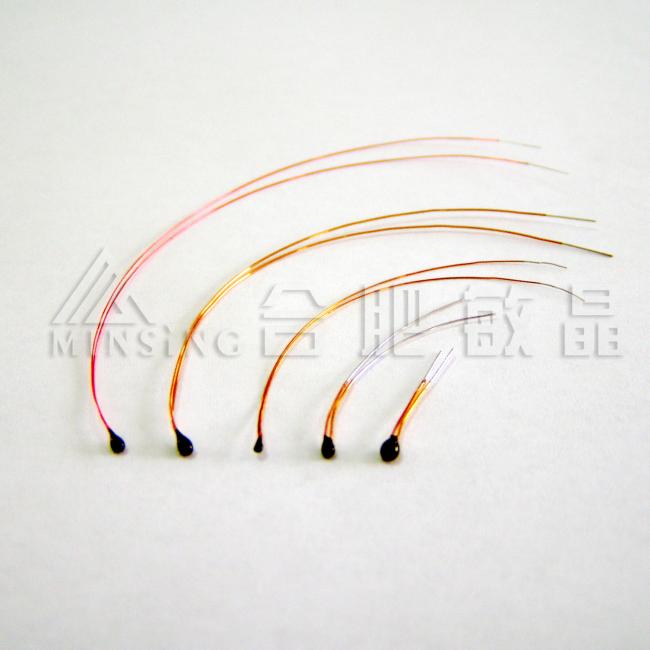

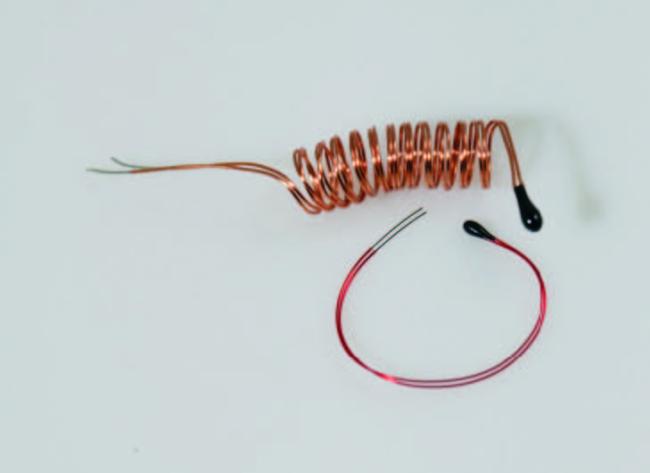

Epoxy Coated NTC Thermistor with Enameled Lead Wires for  Digital Thermometers

Manufactured from the oxide of the transition metals Manganese,Cobalt,Copper and Nickel . NTC Thermistor are temperature dependant semiconductor resistors . The material is baked with high temperature upto 1400℃ ,then the thermistor is formed combined with our advanced semiconductor processing technics.

Applications:

Temperature compensation in circuitry.

Digital thermometer / Microwave therapeutic equipment

Thermo control instruments and electronic washing equipment

Product Feature:

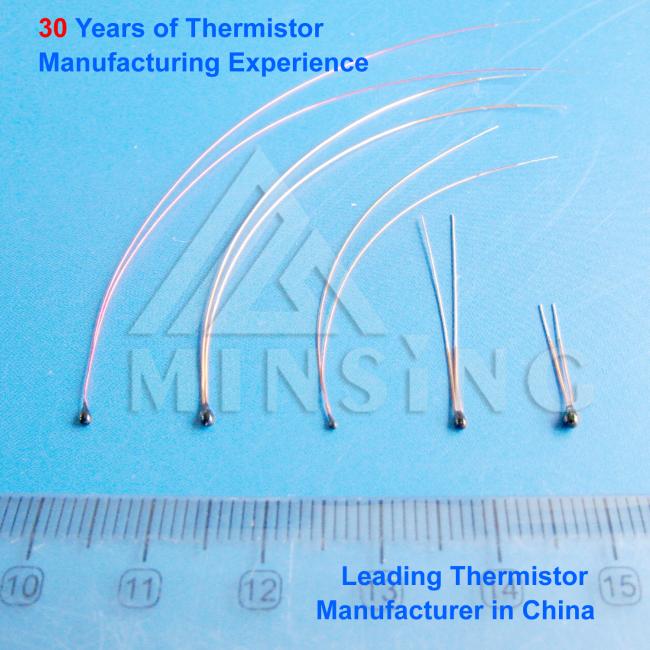

Medical application precise / Varnished wire / Miniature sensor bead

Specification Explain:

MJ      MF      5A-4        -3470      -502       F

①       ②         ③              ④           ⑤       ⑥

① Minsing Co.,Ltd

② NTC thermistor

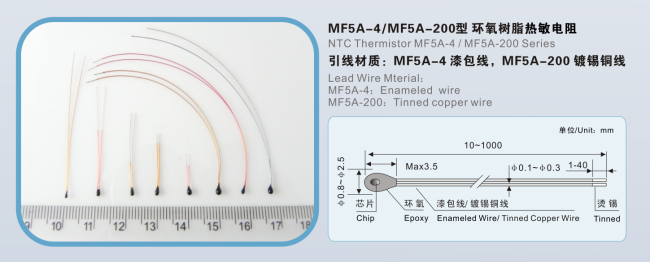

③ Epoxy coating type 5A-4  series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.

How to order?

1. The application of the NTC thermistor or temperature sensor:__________

2. The range of operation temperature:___°c to ___°c

3. The dimension and the drawing of the Thermistor

4. The R value:_____K ohm ±________% at _____°c,

5. The B value: (_____°c/____°c) = ______K ± _____%

6. Quantity demanded: _________ pcs
