TS16949 Garbage Truck Hydraulic Cylinders Telescopic Sanitation Vehicles Station
TS16949 Garbage Truck Hydraulic Cylinders Telescopic Sanitation Vehicles Station
Product Advantage:

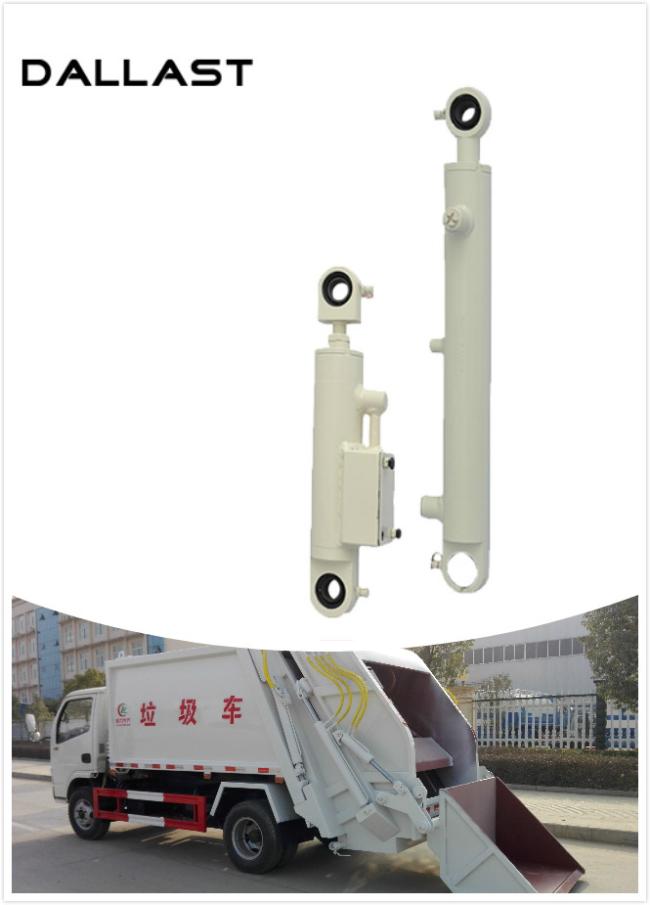

Sanitation vehicles hydraulic cylinder are widely used in various types of compression sanitation garbage truck hydraulic system. This series of cylinders include push plate cylinder, sliding cylinder, scraper cylinder, lifting cylinder and so on. Push-push cylinder which is a double-acting multi-stage telescopic sleeve hydraulic cylinder, out of the oil ports are located in the rod end. The series cylinder structure is reasonable, reliable, easy assembly and disassembly, easy maintenance. Another special requirements according to user needs and technical parameters for special design.
According to user requirements, design and manufacture of this series of derivative products.
HS Code : 8412210000
Seal : Hallite,SKF,NOK,Guarnitec,Parker
Coating : chrome plated
Warranty : One year after shipping arrival
| Model | Name |
Pressure MPa |
Stroke mm |
Bore/Rod mm |
| HSG63/35-110*470 | Flip cylinder |
16 |
110 | 63(35) |
| HSG100/45*800 | Lift cylinder(L / R) | 800 | 100(45) | |
| HSG90/45*485 | Lift cylinder(L / R) | 485 | 90(45) | |
| HSG40/20-400*700 | Lock pin cylinder |
18 |
400 | 40(20) |
| HSG80/40*430 | Scraper cylinder(L / R) | 430 | 80(40) | |
| 3HSTG150-1935A*1000 | Multistage double action push plate cylinder |
16 |
1935 |
150/120/90 (135/105/75) |
| 4HSTG180*5500 | Multistage double action sanitation station push plate cylinder | 5500 |
180/150/120/90 (165/135/105/75) |
