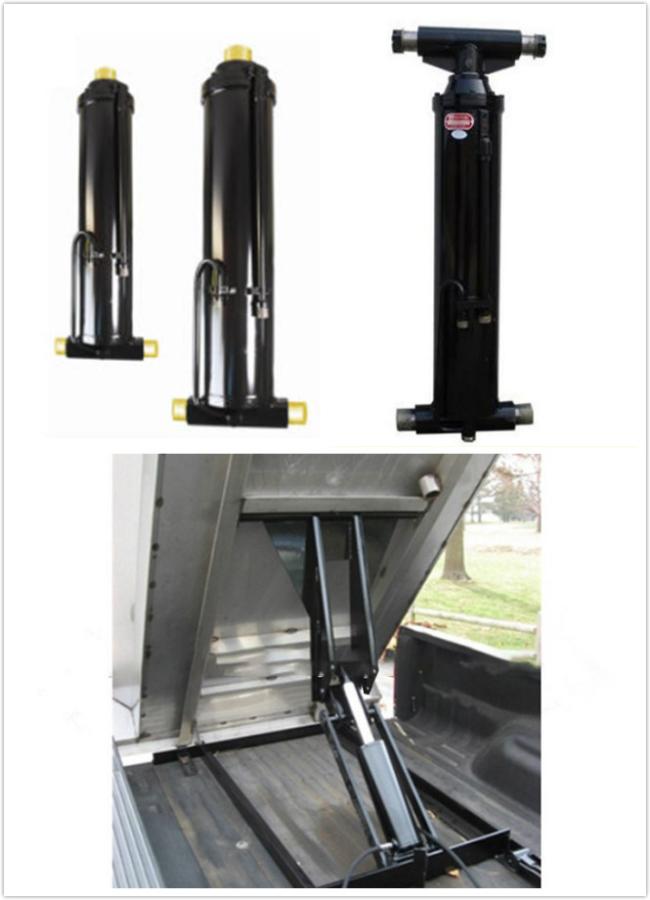

Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
20- 25 days after down payment
Brand:
DALLAST
Product Description
Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder
We specialize in design and manufacture hydraulic cylinders that are used in a variety of fields including:
- Construction Machinery cylinders : loaders, excavator, forklift, bulldozer, dumper, roller, crane etc.
- Metallurgical Machinery cylinders : decelerator, tile press etc.
- Mining Machinery cylinders : crasher, coal cutter etc.
- Agricultural & forestry machinery cylinders : soil preparation machine, harvester, weeder etc.
Manufacturing capability
- Complete CNC Machining capabilities
- Bore size from 40mm to 800mm,
- Stroke lengths to 12000mm or longer
- Working pressures to 42Mpa
- Customized your needed hydraulic cylinder
How do we ensure product quality?
piston rod:
1: hard chrome plating
2: thickness of 0.03-0.05mm;
3: in-house salt spray test
cylinder tube:
1: standard material-#45, SAE1045, CK45
2. surface roughness: Ra0.4-0.08micron
Seals:NOK, Hallite, Parker etc.
Welding:mannual & machine welding
| Application | Dump truck, Tipper, Dump Trailer |
| Material of cylinder tube | Alloy steel,Carbon steel,27SiMn |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Coating | chrome plated |
| Working pressure | 16MP, 18MP or 22MP for your selection |
| Stroke | 630mm, 735mmm,750mm,900mm or per your requirements |
| Color | Red black blue gray,or according to customer's requirements |
| Mounting type | Earring-trunnion, double trunnion, double earring,or per customer's request |
| Package | Shrink film, wooden pallet and carton |
| Delivery time | 30 days after payment receiving |

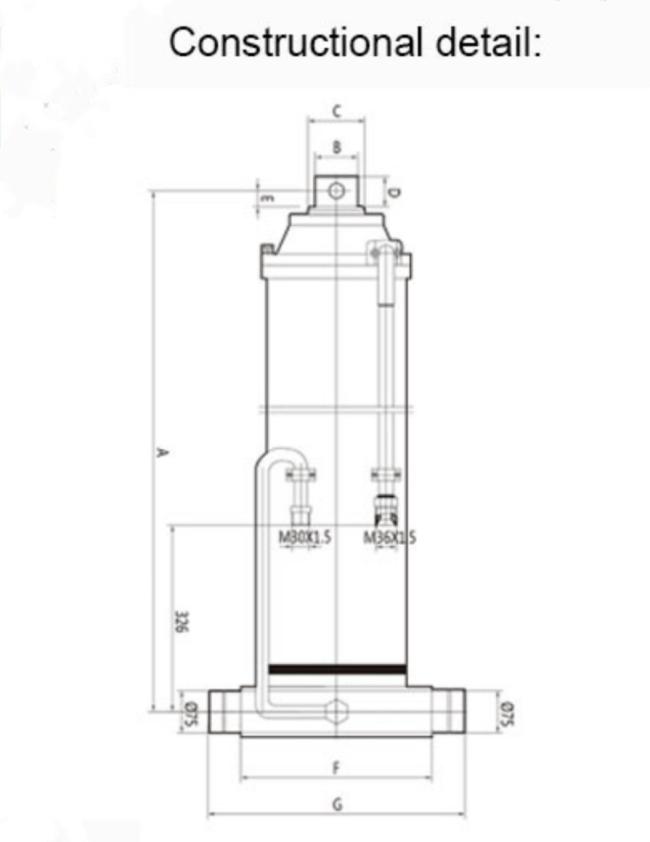

General model as below:
| Type |
Strock (mm) |
SizeA (mm) |
SizeB (mm) |
SizeC (mm) |
SizeD (mm) |
SizeE (mm) |
SizeF (mm) |
SizeG (mm) |
Theoretical pull |
| HG-F220*900RZ | 900 | 1217 | 75 | 100 | 53 | 28 | 365 | 485 | 76.026 |
| HG-F220*750RZ | 750 | 1075 | 70 | 100 | 45 | 25 | 300 | 450 | 62.831 |
| HG-F220*750RZ | 750 | 1075 | 60 | 50 | 45 | 25 | 335 | 450 | 40.715 |
| HG-F220*735RZ | 735 | 1075 | 70 | 50 | 45 | 25 | 335 | 450 | 40.715 |
| HG-F220*630RZ | 630 | 965 | 60 | 70 | 45 | 25 | 335 | 450 | 32.170 |
