Telescopic Lift Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: 20- 25 days after down payment

Brand: DALLAST

Product Description

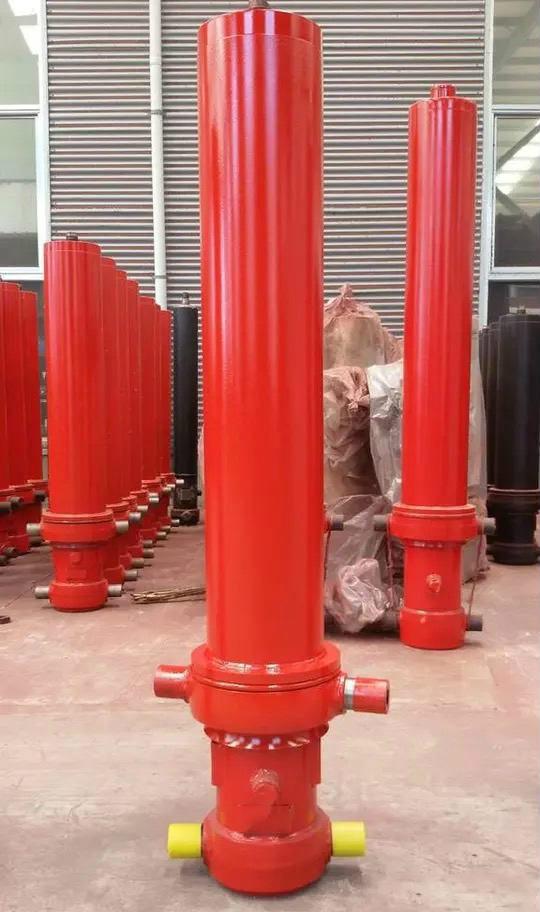

Telescopic Lift Dump Truck Hydraulic Cylinder Hoist Tipper 16MPa Pressure

We are giving the best quality Hydraulic Cylinder to our various clients across the world. To manufacture the hydraulic cylinder we are maintaining high level infrastructure without any compromise. We have different kinds of Hydraulic Cylinders like Hydraulic Cylinder for Automotive, Hydraulic Cylinder for Heavy Machinery, Hydraulic Cylinder for Earthmoving Equipments, Telescopic Hydraulic Cylinder, Hydraulic Cylinder for Cement Plants and many more items with effective time delivery to our customers.

Manufacturing capability

Complete CNC Machining capabilities
Bore size from 40mm to 800mm,
Stroke lengths to 12000mm or longer
Working pressures to 42Mpa
Customized your needed hydraulic cylinder

HS Code	8412210000

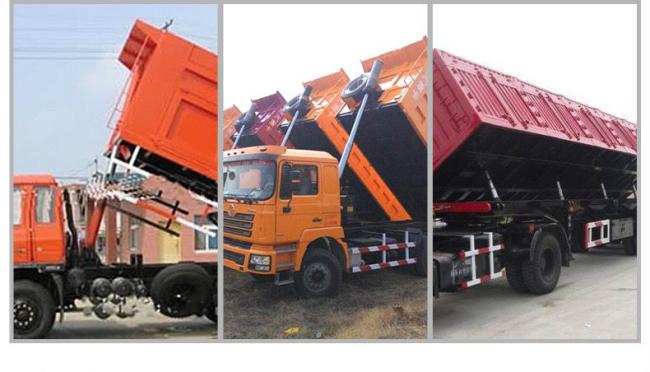

Application	Dump truck, Tipper, Trailer
Material of cylinder tube	Alloy Steel,Carbon steel,27SiMn
Temperature	-30ºC~100ºC
Color	red black blue gray,can custom according request
Mounting Type	Earring-trunnion, double trunnion, double earring (eye end)
Plunger	20#, 45# steel ,27Simn

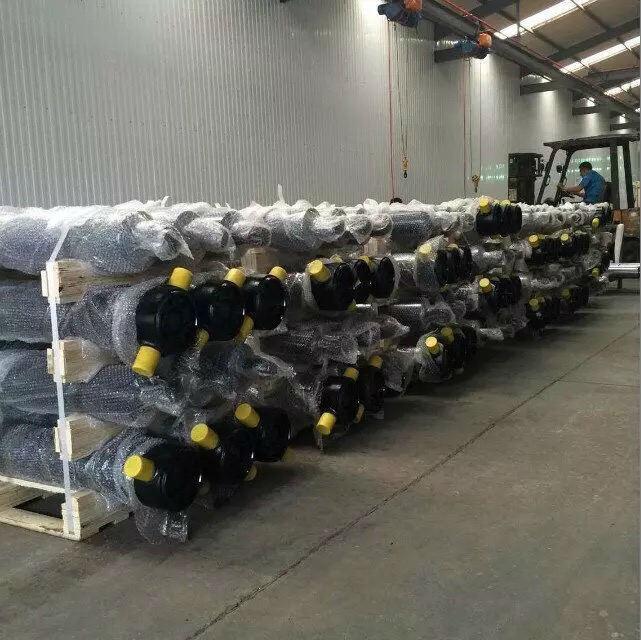

Package	shrink film, pallet, plywood case and carton
Warranty	One year after shipping arrival
Payment terms	T/T, L/C, West Union,Paypal
Delivery time	15- 25 days after down payment

MODEL NO.	Stage	First Stage Diameter	Stroke	Largest Sleeve OD	Closed length	Mounting distance
MODEL NO.	Stage	[mm]	[mm]	[mm]	[mm]	[mm]
FC-3-107-2855	3	107	2855	152	1268	311
FC-3-107-3115	3	107	3115	152	1368	311
FC-3-107-3265	3	107	3265	152	1418	311
FC-3-107-3415	3	107	3415	152	1468	311
FC-3-107-3715	3	107	3715	152	1568	311
FC-3-126-3230	3	126	3230	219	1403	343
FC-3-126-3680	3	126	3680	219	1553	343
FC-3-126-3830	3	126	3830	219	1603	343
FC-3-126-4400	3	126	4400	219	1803	343
FC-4-126-4145	4	126	4145	219	1357	343
FC-4-126-4345	4	126	4345	219	1407	343
FC-4-126-4545	4	126	4545	219	1457	343
FC-4-126-4745	4	126	4745	219	1507	343
FC-4-126-4945	4	126	4945	219	1557	343
FC-4-126-5145	4	126	5145	219	1607	343
FC-3-145-3230	3	145	3230	219	1403	343
FC-3-145-3680	3	145	3680	219	1553	343
FC-3-145-3830	3	145	3830	219	1603	343
FC-4-145-4110	4	145	4110	219	1357	343
FC-4-145-4310	4	145	4310	219	1407	343
FC-4-145-4510	4	145	4510	219	1457	343
FC-4-145-4710	4	145	4710	219	1507	343
FC-4-145-4910	4	145	4910	219	1557	343
FC-4-145-5110	4	145	5110	219	1607	343
FC-4-145-5310	4	145	5310	219	1657	343
FC-4-145-5865	4	145	5865	219	1807	343
FC-5-145-4310	5	145	4310	219	1161	343
FC-4-165-4110	4	165	4110	244	1347	343
FC-4-165-4510	4	165	4510	244	1447	343
FC-4-165-4710	4	165	4710	244	1497	343
FC-4-165-4910	4	165	4910	244	1547	343
FC-4-165-5110	4	165	5110	244	1597	343
FC-4-165-5310	4	165	5310	244	1647	343
FC-4-165-5865	4	165	5865	244	1797	343
FC-5-165-5135	5	165	5135	244	1351	343
FC-5-165-5385	5	165	5385	244	1401	343
FC-5-165-5635	5	165	5635	244	1451	343
FC-5-165-6135	5	165	6135	244	1551	343
FC-5-165-6385	5	165	6385	244	1601	343
FC-5-165-6825	5	165	6825	244	1701	343
FC-5-165-7075	5	165	7075	244	1751	343
FC-5-165-7325	5	165	7325	244	1801	343
FC-5-165-7575	5	165	7575	244	1851	343
FC-5-165-7825	5	165	7825	244	1901	343
FC-5-165-8185	5	165	8185	244	2001	343
FC-5-165-8435	5	165	8435	244	2051	343
FC-5-187-5135	5	187	5135	244	1351	343
FC-5-187-5385	5	187	5385	244	1401	343
FC-5-187-5635	5	187	5635	244	1451	343
FC-5-187-6135	5	187	6135	244	1551	343
FC-5-187-6385	5	187	6385	244	1601	343
FC-5-187-6825	5	187	6825	244	1701	343
FC-5-187-7075	5	187	7075	244	1751	343
FC-5-187-7325	5	187	7325	244	1801	343
FC-5-187-7825	5	187	7825	244	1901	343
FC-5-187-8185	5	187	8185	244	2001	343
FC-5-187-8435	5	187	8435	244	2051	343
FC-5-187-8935	5	187	8935	244	2151	343
FC-5-187-9185	5	187	9185	244	2201	343
FC-6-187-8790	6	187	8790	244	1805	843
FC-6-187-9085	6	187	9085	244	1855	343
FC-7-187-8535	7	187	8535	244	1559	343
FC-5-210-6135	5	210	6135	273	1551	343
FC-5-210-6825	5	210	6825	273	1701	343
FC-5-210-7075	5	210	7075	273	1751	343
FC-5-210-7325	5	210	7325	273	1801	343
FC-5-210-7825	5	210	7825	273	1901	343
FC-5-210-9185	5	210	9185	273	2201	343

FC Type Hydraulic Cylinder
MODEL NO.	Stage	Largest Stage Diameter	Stroke	The largest sleeve OD	Mounting distance
MODEL NO.	Stage	(mm)	(mm)	(mm)	(mm)
FC-3-110-3205	3	110	3205	168	343
FC-3-110-3460	3	110	3460	168	343
FC-3-129-2980	3	129	2980	218	343
FC-3-129-3205	3	129	3205	218	343
FC-3-129-3460	3	129	3460	218	343
FC-3-129-3880	3	129	3880	218	343
FC-3-129-4270	3	129	4270	218	343
FC-4-129-4280	4	129	4280	218	343
FC-4-129-4280	4	129	4280	218	343
FC-4-129-5180	4	129	5180	218	343
FC-4-149-3680	4	149	3680	218	343
FC-4-149-3980	4	149	3980	218	343
FC-4-149-4280	4	149	4280	244	343
FC-4-149-4620	4	149	4620	244	343
FC-4-149-4940	4	149	4940	244	343
FC-4-149-5180	4	149	5180	244	343
FC-4-149-5460	4	149	5460	244	343
FC-4-169-4280	4	169	4280	244	343
FC-4-169-4620	4	169	4620	244	343
FC-4-169-4940	4	169	4940	244	343
FC-4-169-5180	4	169	5180	244	343
FC-4-169-5460	4	169	5460	244	343
FC-5-169-5355	5	169	5355	244	343
FC-5-169-5780	5	169	5780	244	343
FC-5-169-6180	5	169	6180	244	343
FC-5-169-6830	5	169	6830	244	343
FC-5-169-7130	5	169	7130	244	343
FC-5-169-7630	5	169	7630	244	343
FC-5-169-8130	5	169	8130	244	343
FC-5-169-9030	5	169	9030	244	343
FC-5-169-9530	5	169	9530	244	343
FC-4-191-5460	4	191	5460	274	343
FC-5-191-5780	5	191	5780	274	343
FC-5-191-6180	5	191	6180	274	343
FC-5-191-7130	5	191	7130	274	343
FC-5-191-7630	5	191	7630	274	343
FC-5-191-8130	5	191	8130	274	343
FC-5-191-9030	5	191	9030	274	343
FC-5-191-9530	5	191	9530	274	343
FC-5-214-7610	5	214	7610	274	343
FC-5-214-9030	5	214	9030	274	343
