Telescopic 2 / 3 Stage Trunnion Vehicles Dump Truck Hydraulic Cylinder
Telescopic 2 / 3 Stage Trunnion Vehicles Dump Truck Hydraulic Cylinder
DALLAST specializing in the product hydraulic cylinder of various vehicles and equipment, and all kinds of piston hydraulic cylinder. TG Vehicle sleeve cylinder main 110 series
110 * 375 is two stage sleeve car cylinder, it is matching with garbage truck . The total length of 750MM, trunnion diameter of 50,the installation from the center of trunnion to pin hole center is150mm, the inlet port in the trunnion, the thread size M20 * 1.5. Latching hole 30mm.
Enterprise Concept
----We are professional manufacturing expert of Hydraulic Cylinders
----Service customer,Strive for excellent quality
----Scientific management,Unity and efficiency
We have many Types for you choice,also can custom design according your requestion.
| HS Code | 8412210000 |

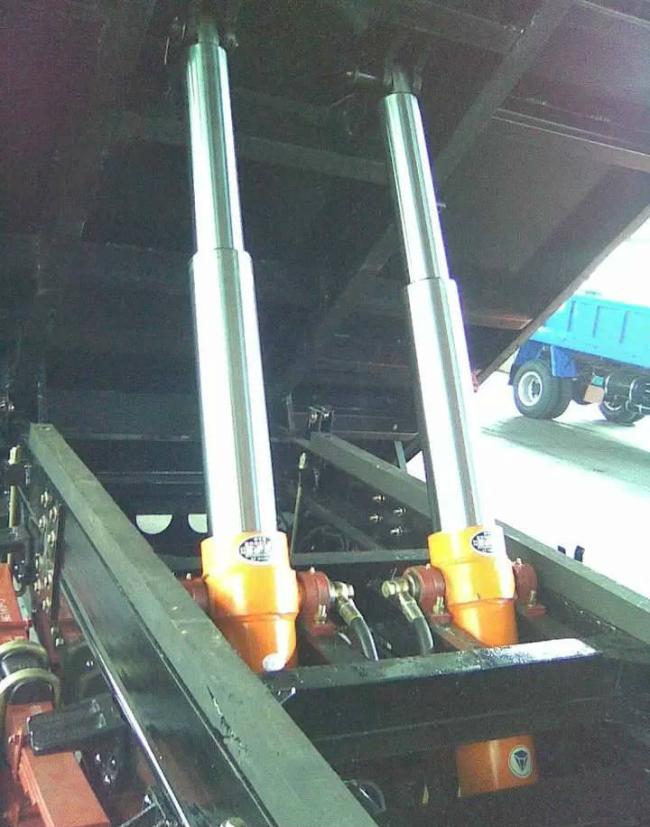

| Application | Agricultural vehicles/tricycle/dump truck/Sanitation car |
| Material of cylinder tube | Alloy steel,Carbon steel,27SiMn |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Coating | chrome plated |
| Temperature | -30ºC~80ºC |
| Working pressure | 16mpa-21mpa |
| Color | red black blue gray,can custom according request |
| Mounting Type | Middle-trunnion |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001-2009 ,TS16949 |
| Package | shrink film, pallet, plywood case and carton |
| Warranty | One year after shipping arrival |
| Payment terms | T/T, L/C, West Union,Paypal |
| Delivery time | 20- 25 days after down payment |
| Model | Pressure(MPa) | Bore Diameter(mm) | Stroke(mm) |
| 110mmx550mm | 16 | 110 | 550 |
| 110mmx510mm | 16 | 110 | 510 |
| 110mmx500mm | 16 | 110 | 500 |
| 110mmx475mm | 16 | 110 | 475 |
| 110mmx450mm | 16 | 110 | 450 |
| 110mmx420mm | 16 | 110 | 420 |
| 110mmx375mm | 16 | 110 | 375 |
| 110mmx340mm | 16 | 110 | 340 |
| 110mmx300mm | 16 | 110 | 300 |
| 90mmx450mm | 16 | 90 | 450 |
|
We also can custom design other sizes as costomer's requirements
|
|||
