Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder
Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder
| HS Code | 8412210000 |
| Application | Agricultural vehicles/tricycle/dump truck/Sanitation car |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Coating | chrome plated |
| Temperature | -30ºC~80ºC |
| Color | red black blue gray,can custom according request |
| Mounting Type | Middle-trunnion |
| Plunger | 20#, 45# steel with high frequency quenching |
DALLAST specializing in the product hydraulic cylinder of various vehicles and equipment, and all kinds of piston hydraulic cylinder. TG Vehicle sleeve cylinder main 110 series

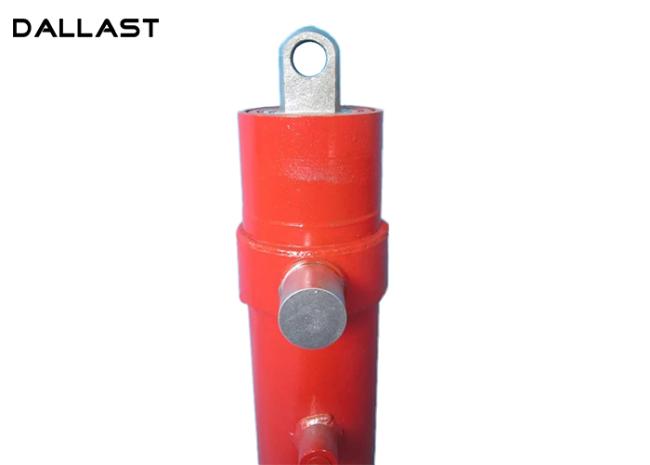

Trunnion diameter of 50,the installation from the center of trunnion to pin hole center is150mm, the inlet port in the trunnion, the thread size M20 * 1.5. Latching hole 30mm.

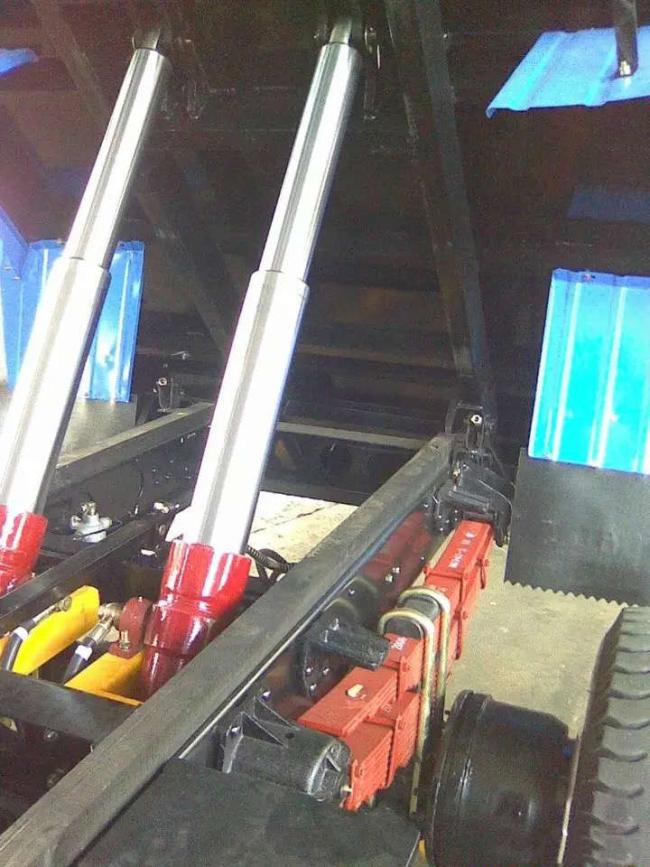

TG series of single-acting multi-stage telescopic sleeve hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
We have many Types for you choice,also can custom design according your requestion.
| TG series Hydraulic Cylinder | ||||
| Model | Stage | Pressure(MPa) | Bore Diameter(mm) | Stroke(mm) |
| 110mmx510mm | 2 | 16 | 110/90 | 510 |
| 110mmx500mm | 2 | 16 | 110/90 | 500 |
| 110mmx475mm | 2 | 16 | 110/90 | 475 |
| 110mmx450mm | 2 | 16 | 110/90 | 450 |
| 110mmx420mm | 3 | 16 | 110/90/70 | 420 |
| 110mmx340mm | 3 | 16 | 110/90/70 | 340 |
| 110mmx300mm | 3 | 16 | 110/90/70 | 300 |
| 90mmx450mm | 2 | 16 | 90/70 | 450 |
| 110mmx375mm | 2 | 16 | 110/90 | 375 |
