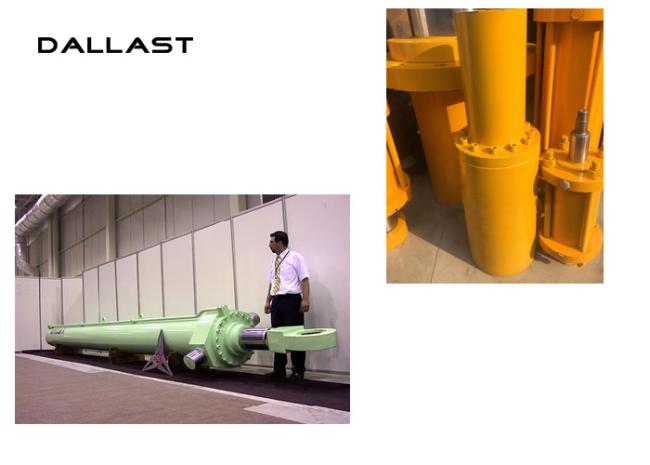

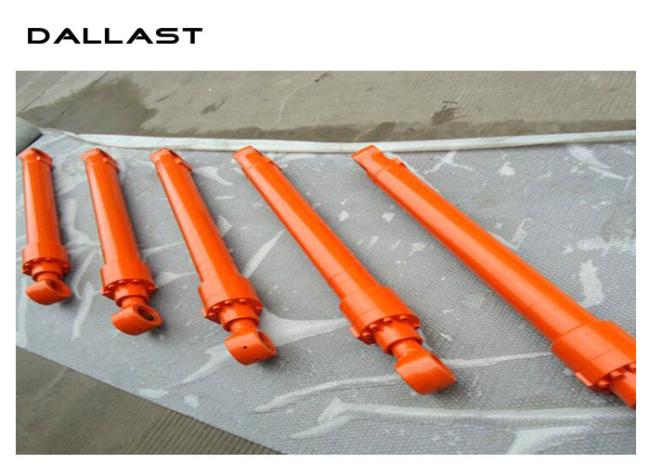

DALLASTcan supply the vertical mill hydraulic cylinders for the cement production lines including: 1200T/D, 2000T/D, 2500T/D, 3000T/D, 5000T/D. 5000T/D. etc.
| Name | Description |
| Tube | Seamless forged tube |
| Base | Welded, screwed, bolts, tie rod |
| Head | connected by threading, bolts, or tie rod |
| Piston | machined with grooves, can be single acting or double acting |
| Piston rod | High tolerance, hard chrome plated, cold rolled steel |
| Seals | Halite, NOK, Parker, Merkel |
1. Cylinder tube size and choice
A. According to the cylinder pressure and inside diameter size, different steel tube Would be chosen.
a. ID ≤300mm, cold rolled precision seamless tube would be choose
b. 300mm≤ID ≤500mm, hot rolled seamless tube would be choose
c. 500mm≤ID ≤1000mm, forged tube would be chosen
B. Cylinder tube steel grade: 27SiMn
a. Cylinder tube inside boring and honing, roughness R0.2-R0.3,
b. Cylinder tube inside chromating: if necessary, tube inside cremating could be applied
.
2. Piston rod is a very important part for hydraulic cylinder.
A. Piston rod steel grade: SAE1045, 42CrMo4, SUS410, SUS420, SUS304, SUS316L
B. Piston rod cremating and surface hardness.
DALLAST ensure that every piece piston rod would be surface hardened before cremating,
surface hardness is HRC55~60, Chromating film thickness is 0.03~0.04mm if there is no other specific
requirements.
3. Seal ring and O ring
According to the customers’ requirements and working condition, DALLAST would choose suitable seal ring kit, seal ring brand include: Parker, Merkel , NOK . DALLAST would supply suitable seal solution for their customer so that hydraulic cylinder has more
lifetime, easy maintenance and simple repairing.
