4 - 10 ton Dump Truck Heavy Duty Hydraulic Cylinder Side Tipper Stainless Steel Material
4 - 10 ton Dump Truck Heavy Duty Hydraulic Cylinder Side Tipper Stainless Steel Material
Hydraulic cylinder:
As manufacturer of hydraulic cylinders in China, we own the best technology and apply for 13 national patent about telescopic hydraulic cylinders so our cylinders own a high reputation in international market, our repair rate is less than 1% every year.
We produce it according to ISO 9001:2000
We can produce standard telescopic hydraulic cylinders and nonstandard telescopic hydraulic cylinders for our customers.
Cylinder Details:
1. Mounting type: turning, flange, earring, according to your demand
2. Seal: use parker, NOK and other famous seal parts to ensure the quality
3. Piston rod: 20#, 45# steel with high frequency quenching
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
5. Bore size: 20-800mm (7/8-20"), stroke can reach to 10000mm
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval
Hydraulic cylinder for engineering
1. Max stroke: 190" or 10000mm
2. Max bore inner diameter: 32" or 800mm
3. Various structure form
We have 4X2, 6X4, 8X4 type dump truck and dump semi trailer for your chooice!
For the transportation of coal, ore, building materials and all sorts of bulk cargo products.
Brief Introduction To Our Factory
Dallast Technology Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,
Majored in semi trailer, special vehicle manufacture, our products are mainly exported to
Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries
Service We Promised for Each Item From Our Factory
1. 3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs
Dealing Process
1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.
|
4 - 10 ton Dump Truck Heavy Duty Hydraulic Cylinder Side Tipper Stainless Steel Material
|
||||||
| Model | Rated pressure | Bore diameter | Installation distance | Stroke | Rated theoretical thrust(KN) | |
| (MPa) | (mm·) | (mm) | (mm) | First class | Last class | |
| 4TG-E180*800 | 16 | 180 | 140 | 800 | 410 | 210 |
| 4TG-E160*800 | 16 | 160 | 140 | 800 | 320 | 170 |
| 3TG-E150*800 | 16 | 150 | 140 | 800 | 280 | 145 |
| 5TG-E130*750 | 16 | 130 | 140 | 750 | 210 | 110 |
| 3TG-E130*900 | 16 | 130 | 140 | 900 | 210 | 110 |
| 4TG-E110*1360 | 16 | 110 | 140 | 1360 | 150 | 32 |
| 3TG-E110*1530 | 16 | 110 | 140 | 1530 | 150 | 60 |
| 3TG-E110*1350 | 16 | 110 | 140 | 1350 | 150 | 60 |
| 3TG-E110*1020 | 16 | 110 | 140 | 1020 | 150 | 60 |
| 3TG-E110*900 | 16 | 110 | 260 | 900 | 150 | 60 |
| 2TG-E110*1020 | 16 | 110 | 140 | 1020 | 150 | 100 |
| 3TG-E90*1155 | 16 | 90 | 140 | 1155 | 100 | 30 |
| 3TG-E90*1020 | 16 | 90 | 140 | 1020 | 100 | 30 |
| 3TG-E90*900 | 16 | 90 | 260 | 900 | 100 | 30 |
| 3TG-E90*750 | 16 | 90 | 140 | 750 | 100 | 30 |
| 2TG-E90*900 | 16 | 90 | 140 | 900 | 100 | 60 |
| 2TG-E90*600 | 16 | 90 | 260 | 600 | 100 | 60 |
| 2TG-E90*500 | 16 | 90 | 260 | 500 | 100 | 60 |
| 3TG-E70*750 | 16 | 70 | 140 | 750 | 60 | 20 |
FAQ:
Q1: What's the brand name of your products ?
A: Generally,we use our own brand "DALLAST", OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits.As is known to all,vehicles in China are often overload,our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.
Q5:What about the quality feedback of your products?
A: Guarantee the quality from the raw material. We have cold drawing production line and nickel-chrome electroplating production line , so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder.
Q6: Is the sample free?
A: Yes.In our acceptable range, we can offer a sample by charging freight. And we will return the fee after you place bulk order.
Q7: How about the delivery time?
A: Over 700 sets advanced equipment to meet customer's large demands in short delivery time. Generally, it's 7-15 days.
Q8: What 's the after-service?
A: If the quality can’t meet your requirements, we will pay all your lost and offer technical support to solve your problem!!!

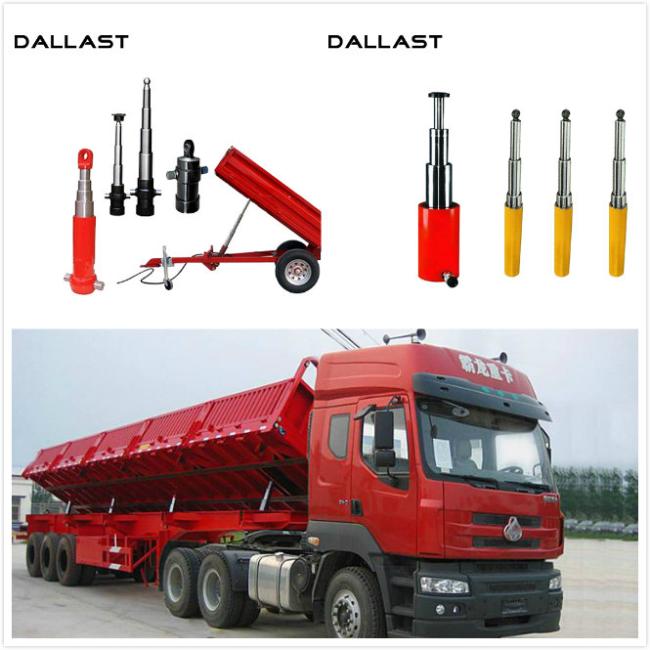

Product Show:
