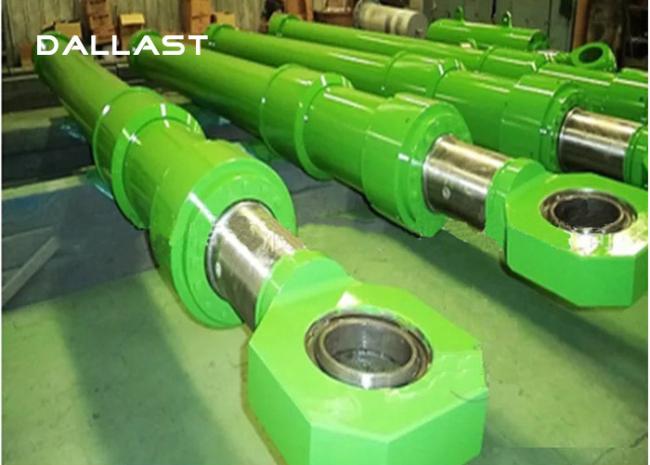

Customized Heavy Duty Hydropower Station Dam Gates Hydraulic Hoist Cylinder

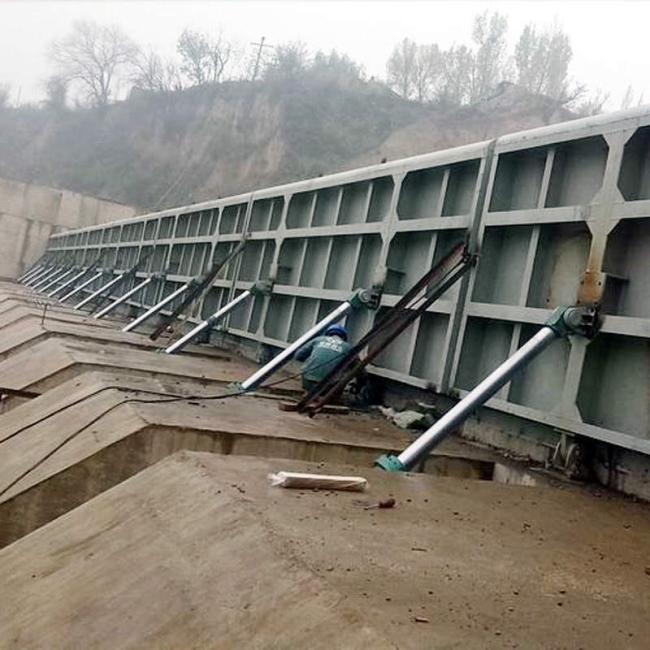

     Integrated hydraulic hoist is a motor as the power source, the motor forward and reverse drive the two-way pump output pressure oil, driven by the oil manifold block piston rod displacement reciprocating motion, in order to achieve the gate opening and closing function. It is a hydraulic cylinder as the main body, respectively, by the pump, motor, fuel tank, oil filter, integrated hydraulic control valve, electrical control box and other combinations, according to hoist working characteristics of different hydraulic cylinders.
     Please provide hoist model, itinerary, installation form, opening and closing force, gate type (L: horizontal sliding door, P: plane gate, H: arc gate, W: gate under the gate,R: Miter gate), hanging points, opening and closing the gate speed and other related parameters.

The company mainly products

1. Engineering hydraulic cylinder series:

Hydraulic cylinder mainly refers to: hydraulic cylinders for hydraulic systems such as construction machinery, heavy machinery, cranes and mining machinery, but not limited to the above. Hydraulic cylinder for the double-acting, single-piston hydraulic cylinder, the installation of more use of earrings, according to the cylinder head and cylinder connection can be divided into different ways of external thread connection, the card key connection and flange connection.

2. Metallurgical equipment hydraulic cylinder

Metallurgical equipment standard hydraulic cylinder with a variety of specifications and varieties, bore diameter is generally in the 40-320mm range, working pressure ≤ 16MPa, available hydraulic oil mechanical system loss of oil and emulsion and other working medium, the use of temperature range of -40 ~ 80 ℃ , The installation of a flange, earrings, pins and other forms and in line with ISO6020 / 1-1981 standards, in addition to tripod (base) type.

3. Vehicles hydraulic cylinder

This series of hydraulic cylinders is mainly used in hydraulic systems of construction machinery, lifting and transport machinery, mining equipment and other vehicles, the installation method is: earrings, are double-acting single-piston hydraulic cylinder.

4. Heavy duty hydraulic cylinder

CD / CG250 CD / CG350 series heavy duty hydraulic cylinder

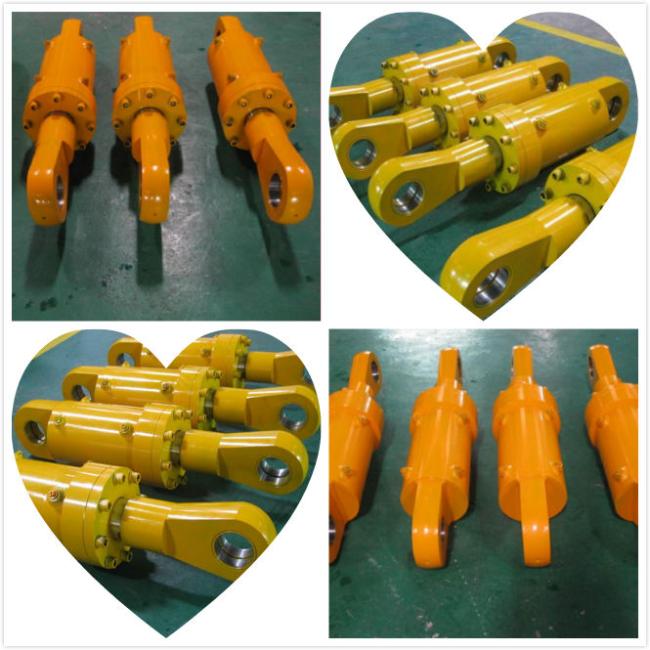

Heavy-duty hydraulic cylinder has a single-piston double-acting CD-type differential piston cylinder and double acting CG-type double-acting piston cylinder two. Its installation form and size in line with ISO3320 standards, especially suitable for harsh environments, heavy working conditions, suitable for steel, casting and machinery manufacturing and other occasions.

5. Telescopic sleeve hydraulic cylinder

TG series of single-acting multi-stage telescopic sleeve hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
