Single Acting Multi Stage Telescopic Hydraulic Cylinder For Dump Truck / Farm Truck
Single Acting Multi Stage Telescopic Hydraulic Cylinder For Dump Truck / Farm Truck
Main parameters:
Bore size:1.5"-2"
Rod Diameter: 0.625"-1.25"
Stroke: 200-10000
Working Pressure: 10-32MPa
Oil port: 1/4NPT, SAE is available
Tube: Precision honed steel
Piston & Gland: Dctile iron
Rod: Hard chrome plated
Intended Use: Single actingApplication
| No. | Model | Extension | Primary bushing diameter |
Stroke | upper t runnion |
bottom trunnion | Lug Dia |
Closed Length |
||
| ID From withins |
From the outside |
From within |
From the outside |
|||||||
| 1 | 37TG-F85 x 2743EZ-00 | 3 | 85 | 2726 | 165.1 | 228.5 | 32 | 195 | ||
| 2 | 4TG-F 150 X 4280EZ-00 | 4 | 150 | 4280 | 201 | 331 | 60 | 1394 | ||
| 4 | 47G-F182X4280ZZ-00 | 4 | 182 | 4280 | 340 | 470 | 245 | 385 | 60 | 343 |
| 5 | 5TG-F196, X 6180ZZ-00 | 5 | 196 | 6180 | 360 | 490 | 270 | 400 | 60 | 343 |
| 6 | 5TG-F206 X 7300ZZ-00 | 5 | 206 | 7300 | 360 | 490 | 270 | 400 | 65 | 343 |
| 7 | 5TG-F221 x 903022-00 | 5 | 221 | 9030 | 360 | 490 | 290 | 420 | 65 | 486 |
| 8 | 5TG-F248*9030ZZ-00 | 5 | 248 | 9030 | 420 | 560 | 342 | 480 | 75 | 486 |
Three advantages for hydraulic cylinder:
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Workmanship of the hydraulic cylinder:
1. Seals type: parker,Nok,Busak,Shamban or in accordance with client's requirements.
2. Piston rod: chrome or nickel plated,ground&polished piston rod.
3. Tube: high tensile cold drawn tube,precision honed for extended seal life.
Technical specifications of hydraulic cylinder:
1. hydraulic cylinder with hollow plunger design allows for both pull and push forces.
2. single-acting,spring return.
3. baked surface can resist increasesd corrosion.
4. collar threads for easy fixture.
5. nickel-plated,floating center tube increases product life.
6. For the detailed technical specifications, pls contact us for related product catalogues.
Company Profile:
Dallast Technology co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.
FAQ:
1. How can I decide which model to buy?
We will recommend the most suitable machines for you after informed by your requirements.
2. OME Service Available?
(1) Usually, we will manufacture the products as our design.
(2) We also can make any products accordingclients’ requirements.
3. What is the payment method?
(1) T/T: in advance. (2) West Union: we can accept small payment (below3000), but the bank charges shall be paid by the buyer.
(3) L/C is acceptable if the amount is big enough.
4. Delivery Time?
(1) For standard specification products, usually 15-25 days.
(2) For non-standard products, usually more than 1 month.
5. How about the warranty and after-sale service?
All of our products have one year warranty, and we can offer you long-distance after-sale
service 7/24h.
If you need more information, please contact me without any hesitation. Sincerely welcome you to visit our factory at any time!

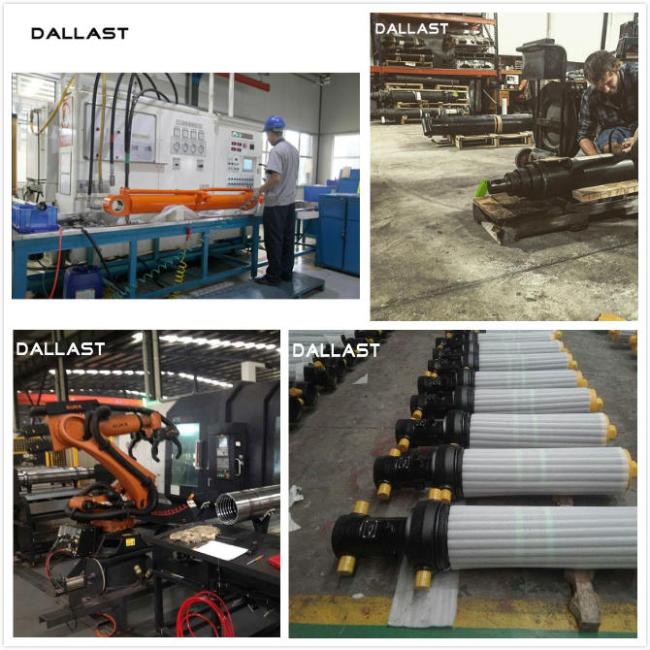

Product Show:
