Single Acting Telescopic Hydraulic Cylinders , Hydraulic Welded Cylinder for Agricultural Machinery

Single Acting Telescopic Hydraulic Cylinders , Hydraulic Welded Cylinder for Agricultural Machinery

Characteristics:

- Larger diameter, more lifting capacity.
- Max working pressure reaches 250 bar, better anti-pressure ability.
- Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
- New model guide ring combined with lubricating material, guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
- 100% tested, guarantee high quality.

Single Acting Hydraulic Cylinder Inner Workings and Uses

A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

We have technology terms and can design drawing according to provided information for your review.

We are solding our products to nearly the whole global.

Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got

your inquiry.Thank you!

Parameters:

Front tipping telescopic hydraulic cylinder for dump truck related parameter:

Special Features:

hydraulic tilting cylinder
As a manufacturer of hydraulic cylinders in China , we own the best technology and apply for 13 national patent about Telescopic Hydraulic Cylinders .so our cylinders own a high reputation in international market , our repair rate is less than 1% every year .

we produce it according to ISO 9001 :2000
we can produce standard telescopic hydraulic cylinders and nonstandard telescopic hydraulic cylinders for our customers .

Cylinder Details:

1. Mounting type: trunnion, flange, earring, according to your demand;
2. Seal: use Parker, NOK and other famous seal parts to ensure the quality.
3. Piston rod: 20#, 45# steel with high frequency quenching;
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder;
5. Size: bore:20-500mm(7/8"- 20"); stroke can reach to 3000mm;
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.

hydraulic cylinder for engineering
1. Max stroke: 190" or 10000mm
2. Max bore ID: 32" or 800mm
3. Various structure form

Custom hydraulic cylinder (OEM):

Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements . If you require our engineer to make a design , please advise us the
following specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example

FAQ:

1. Are you a factory trading company?

Yes, we focus on the hydraulic industry for 15 years.

2. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.

3. Can I get samples to test before starting cooperation?

Of course.We would like produce sample hydraulic cylinder for your confirmation.

4. How many days will samples be finished?

Generally 5-7days for samples making.

5. I want to see your hydraulic cylinders,where is your factory?

Our factory is located in Qingdao City,Shandong Province.

6. What’s your cylinder PPM?

5000 PPM. We do 100% inspection before delivery.

7. Have you been exported to overseas?

We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.

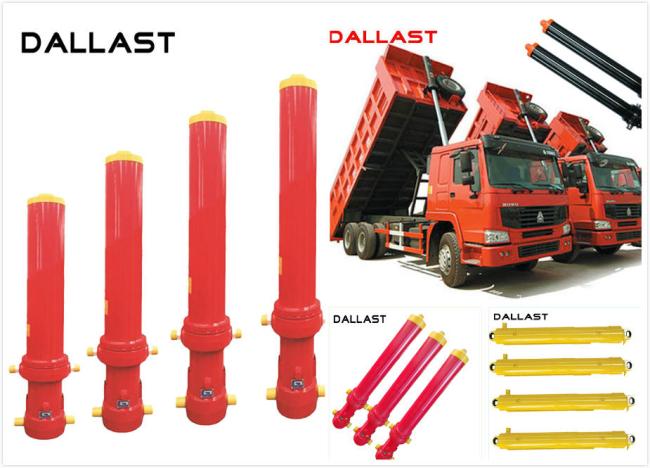

Product Show:
