HRC 45-55 Hardness Dump Truck Hydraulic Cylinder ISO9001 Certification
HRC 45-55 Hardness Dump Truck Hydraulic Cylinder ISO9001 Certification
Three advantages for hydraulic cylinder:
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Main parameters:
Bore size:1.5"-2"
Rod Diameter: 0.625"-1.25"
Stroke: 200-10000
Working Pressure: 10-32MPa
Oil port: 1/4NPT, SAE is available
Tube: Precision honed steel
Piston & Gland: Dctile iron
Rod: Hard chrome plated
Intended Use: Single actingApplication
If you require our engineer to make a design, pls advise us the following specification:
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
| No. | Model | Extension | Primary | Stroke | upper | bottom trunnion | Lug | Closed | ||
ID From | From the | From | From | |||||||
| 1 | 37TG-F85 x 2743EZ-00 | 3 | 85 | 2726 | 165.1 | 228.5 | 32 | 195 | ||
| 2 | 4TG-F 150 X 4280EZ-00 | 4 | 150 | 4280 | 201 | 331 | 60 | 1394 | ||
| 4 | 47G-F182X4280ZZ-00 | 4 | 182 | 4280 | 340 | 470 | 245 | 385 | 60 | 343 |
| 5 | 5TG-F196, X 6180ZZ-00 | 5 | 196 | 6180 | 360 | 490 | 270 | 400 | 60 | 343 |
| 6 | 5TG-F206 X 7300ZZ-00 | 5 | 206 | 7300 | 360 | 490 | 270 | 400 | 65 | 343 |
| 7 | 5TG-F221 x 903022-00 | 5 | 221 | 9030 | 360 | 490 | 290 | 420 | 65 | 486 |
Workmanship of the hydraulic cylinder:
1. Seals type: parker,Nok,Busak,Shamban or in accordance with client's requirements.
2. Piston rod: chrome or nickel plated,ground&polished piston rod.
3. Tube: high tensile cold drawn tube,precision honed for extended seal life.
Technical specifications of hydraulic cylinder:
1. hydraulic cylinder with hollow plunger design allows for both pull and push forces.
2. single-acting,spring return.
3. baked surface can resist increasesd corrosion.
4. collar threads for easy fixture.
5. nickel-plated,floating center tube increases product life.
6. For the detailed technical specifications, pls contact us for related product catalogues.
Dallast Technology Co., Ltd is ISO 9001 Certified for Design and Manufacturing of Hydraulic Cylinders. This certification encompassed with Lean Manufacturing allows us to ensure our products are safe, reliable and of superior quality. Learn more about how we implement Lean Manufacturing here.
Our facility upholds strict cleanliness guidelines at all times. Through a 5S system we maintain a clean and organized environment. This allows us to guarantee your cylinders are produced promptly and efficiently.
Our in-house designers and R&D department will assist you in developing new designs, redesign or troubleshoot your existing cylinder. Using Solidworks software and innovative materials we custom design cylinders that fit your application. Designers are involved in testing 100% of our products before they leave our facility.
FAQ:
| Questions: | Answers: |
| 1. Compared with Hyva cylinder, what are your cylinder advantages? | 1. Tubes are chrome plated. |
| 2. Compared with Hyva cylinder, what are your cylinder advantages? | 1. Tubes are chrome plated. |
| 3. Are you a manufacturer? | Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years. |
| 4. Do your products come with a warranty? | Yes, we have one-year warranty. In this year, if the quality has any problems we will free repair for you. |
| 5. How do you deliver the products? | By sea, By plane |
| 6. What’s your cylinder PPM? | 5000 PPM. We do 100% inspection before delivery. |

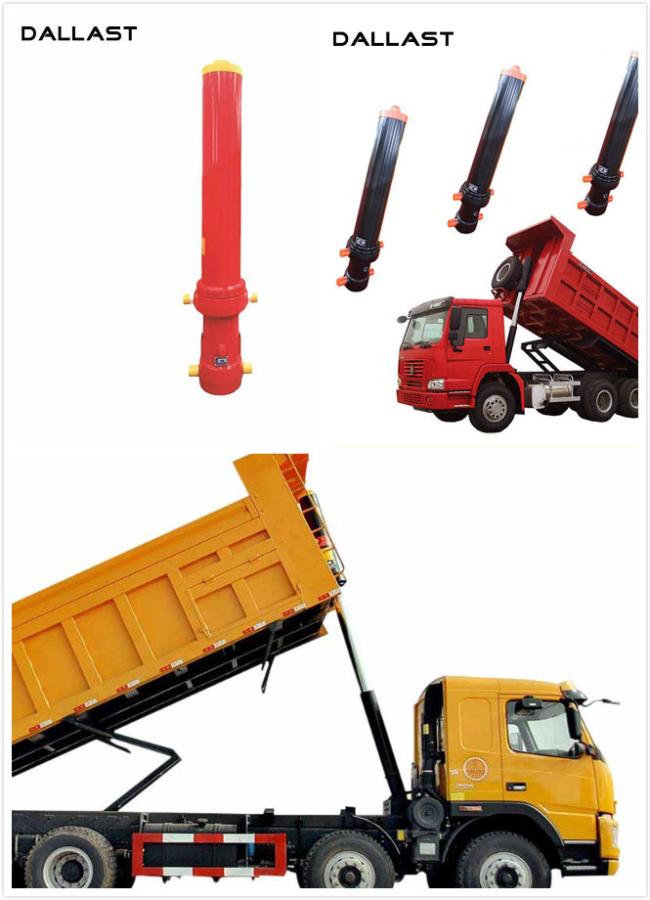

Product Show:
