Hard Chrome Piston Rod Small Hydraulic Cylinders Stainless Steel Body Material

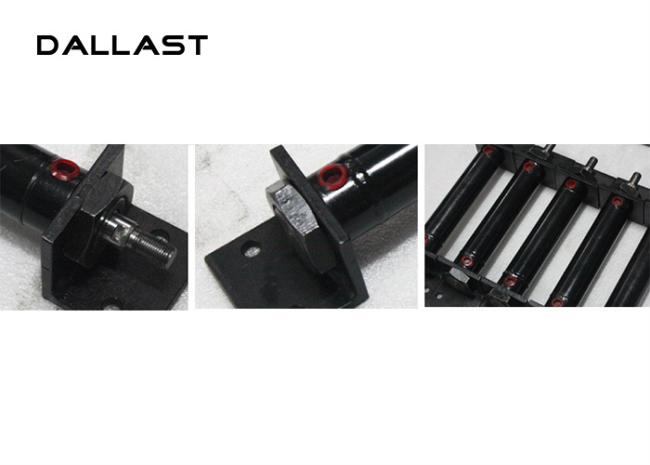

DALLAST Technology Co., Ltd. designed miniature hydraulic cylinder, with an extremely long service life, minimal wear, minimal friction, superior efficiency, practicality, compact structure, small size, light weight, high performance and low cost, The basic types of self-designed miniature hydraulic cylinder are as follows:
1. Single-acting hydraulic cylinder piston hydraulic drive, back by dead weight, spring or other external force.
2. Single-acting plunger hydraulic piston plunger thick, better stress, good stability, one-way into the oil-driven, back by external force.

Applicable pressure range is 7mpa - 14mpa
Applicable speed range 8-300mm / sec
Optional bore 20--100
The maximum travel 5000mm
Optional mounting method: FA (front flange type), FB (rear flange type), CA (rear ear ring type), TA (front trunnion type), etc.

Features:
Imported world famous brands and Chinese brands sealing system
High quality cold drawn steel tube with good rigidity
CNC rolled tube inner surface with roughness of 02-04um
Superior strength chrome-plated rod, anti-corrosion for a long life
High grade ductile iron bar directly machined gland and piston with high strength
High tensile strength tie rods with rolled threads for durability
Dual base-plate oil ports
100% factory tested under at least 15 times of rated pressure

Materials:
Gland-high grade ductile iron
Tube-high quality steel tube, precision skived and rolled
Tube seal-O-ring with anti-extrusion backup washer
Tie rod-High tensile hardened steel
Rod-chrome plated C45 steel
Rod clevis-high grade ductile iron
End cap-high grand ductile iron
Piston-high grade ductile iron, precision machined
Piston seal-crown seal or glass filled nylon wear ring
Rod wiper-metal encased nitride rubber
Rod seal-urethane
Ports-NPT (SAE optional)
Color-red, gloss black or as required
