One Acting Telescopic Hydraulic Cylinder Agricultural Farm Truck Chrome
Single Acting Telescopic Hydraulic Cylinder Agricultural Farm Truck Chrome
Hydraulic cylinder for dump truck , trail truck,garbage truck,crane
1. Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.
2. underbody telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.
hydraulic cylinder for coal mine dump truck
3. Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.
4. Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.
5. customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.
Characteristics:
We are manufacturing various kinds of hydraulic cylinders like:
1. Double Acting Hydraulic cylinders
2. Telescopic Cylinders
3. Piston Hydraulic cylinders
4. Single-acting cylinder
This product is used in numerous application including:
1. Dump truck,
2. Pump trucks,
3. Truck mounted crane,
4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders
Parameters:
Dallast Technology Co., Ltd hopes to work together with you, developing in parallel!
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
| Model | Extended Stages |
Working Pressure | Max. stage | Max. stroke | Lifting Capacity |
Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
| FC129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| FC149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| FC149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| FC149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| FC149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| FC169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
| FC169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| FC169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| FC169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| FC169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| FC169-4E-5460 | 4 | 16-19 | 169 | 5460 | 32-60 | 6.5-7.3 |
FAQ:
Q1. What are the same aspects of your cylinder with Hyva cylinder?
1. Same inside structure.
2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's
Q2. Compared with Hyva cylinder, what are your cylinder advantages?
1. Tubes are chrome plated.
2. Tubes are quenched and tempered.
3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
4. Good quality yet lower price.
Q3. How long is the production time?
Generally the production time is 15-25 days.

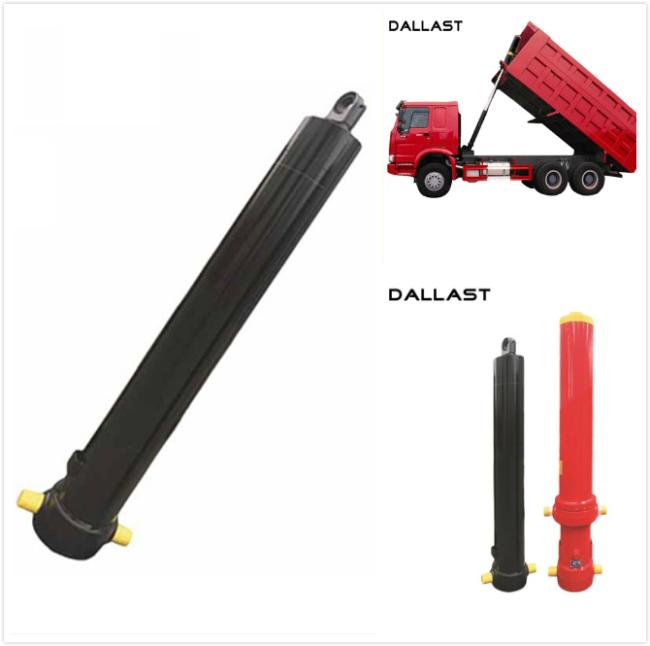

Product Show:
