3 Stage Telescopic Hydraulic Oil Cylinder for Agriculture Dump Trailer Tipper
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
20- 25 days after down payment
Brand:
DALLAST
Product Description

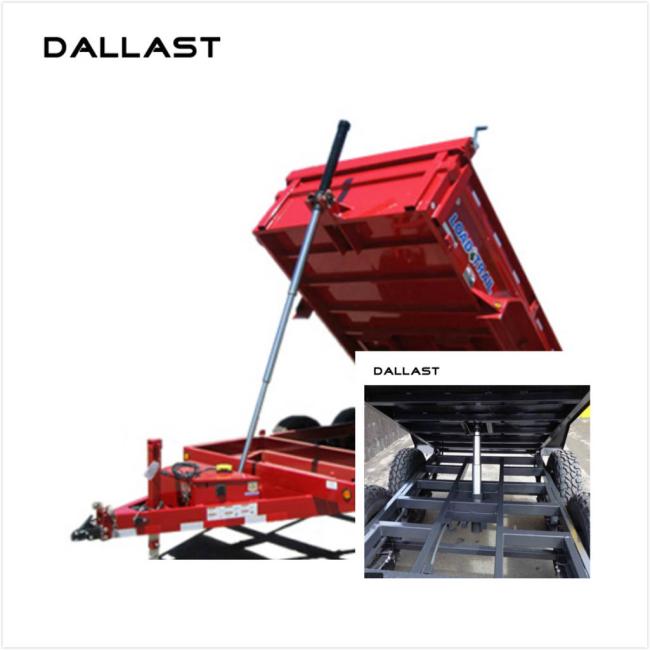

3 Stage Hydraulic RAM Oil Cylinder for Agriculture Dump Trailer Tipper
Application:
- The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery,Mining Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
Products Discription:
| Material | Alloy Steel,Carbon steel,27SiMn | Temperature | -30°C - +100°C |
| Seal | Parker, Merkel, Hallite, Kaden | Working pressure | 16mpa-32mpa |
| Coating | All tubes are chrome plated | Honed tube | Heat treatment, honing, rolling |
| Piston rod | Tempering, plated nickel, Chrome or ceramic | ||
| Main export market | Experience in export North America, Australia, Asia, Middle East, Africa | ||
| Warranty | 12 months after shipping arrival | ||
| Delivery time | 20-25 days after down payment | ||
Advantage:
- Professional, skilled, reliable.
- One-stop total solution
- Ready stock goods with fast delivery
- Customizable: Non-standard sizes are also available
- Small quantity is acceptable
- Refund or replacement for any product fault
- Professional manufacturer supplier of Hydraulic Cylinders for more than 22 years;
- Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
- Hydraulic Cylinders can be product according to client's requirements;
- We are most of famous manufacturing company in telescopic cylinders.
TG series hydraulic cylinder for vechiles
| Model | Pressure (MPa) |
Bore diameter (mm·) |
Installation distance (mm) |
Stroke (mm) |
| 4TG-E180*200 | 160bar | 180 | 140 | 800 |
| 4TG-E160*200 | 160bar | 160 | 140 | 800 |
| 3TG-E150*250 | 160bar | 150 | 140 | 800 |
| 5TG-E130*150 | 160bar | 130 | 140 | 750 |
| 3TG-E130*300 | 160bar | 130 | 140 | 900 |
| 4TG-E110*340 | 160bar | 110 | 140 | 1360 |
| 3TG-E110*510 | 160bar | 110 | 140 | 1530 |
| 3TG-E110*450 | 160bar | 110 | 140 | 1350 |
| 3TG-E110*340 | 160bar | 110 | 140 | 1020 |
| 3TG-E110*300 | 160bar | 110 | 260 | 900 |
| 2TG-E110*510 | 160bar | 110 | 140 | 1020 |
| 3TG-E90*385 | 160bar | 90 | 140 | 1155 |
| 3TG-E90*340 | 160bar | 90 | 140 | 1020 |
| 3TG-E90*300 | 160bar | 90 | 260 | 900 |
| 3TG-E90*250 | 160bar | 90 | 140 | 750 |
| 2TG-E90*450 | 160bar | 90 | 140 | 900 |
| 2TG-E90*300 | 160bar | 90 | 260 | 600 |
| 2TG-E90*250 | 160bar | 90 | 260 | 500 |
| 3TG-E70*250 | 160bar | 70 | 140 | 750 |
