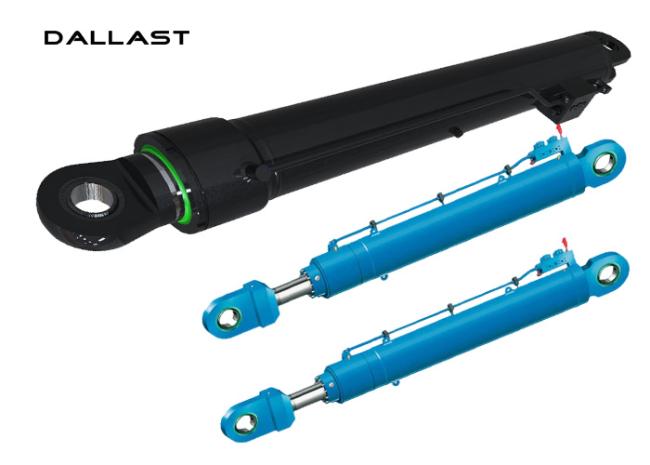

Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering
Industrial Heavy Marine Steering Double Acting Hydraulic Cylinder
Related parameter:
| Type | Hydraulic steering cylinder for vessel |
| Model | customized |
| Bore diameter(mm) | 70 80 63 |
| Piston rod diameter(mm) | 40 50 35 |
| Stroke(mm) | 300 300 356 |
| Working pressure(Psi) | 2500 2500 2500 |
| Max torque(kg*m) | 983 1363 707 |
| Volume(cc) | 1932 2427 1350 |
| Anti-corrosion treatment | Anti-corrosion paint & hard chrome and copper plating |
Specifications:
1. Oil port connection: internal thread or flange
2. cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80 mm diameter)
3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffrt)
Both ends with buffer
without the rod side buffer(-2 ratio, only the clinder head with buffer)
Rod side band buffer
4. piston rod end connection mode: rod end screw
In the end of the thread rod (for D-63 mm diameter)
End of the rod end of the threaded rod end of the earrings with bushing
Rod end inner threaded rod head earring with bushing
Rod end threaded rod head earring for joint bearing
Screw piston rod and ring belt bushing
Integral piston rod ring joint bearing
Models
| models | strock | bore(mm) | the diameter of rod(mm) | push(KN) | tension(KN) |
| HSGK01-160/90E-131 | 715 | 160 | 90 | 321.7 | 219.9 |
| HSGL01-100/60E-131 | 1200 | 100 | 60 | 125.66 | 87.65 |
| HSGK01-80/50E-131 | 700 | 80 | 50 | 101.79 | 70.37 |
| HSGK01-80/50E-131 | 640 | 80 | 50 | 101.79 | 70.37 |
| HSGK01-80/50/E-131 | 550 | 80 | 50 | 101.79 | 70.73 |
| HSGL01-80/50-131 | 500 | 80 | 50 | 80.43 | 54.98 |
| HSGL01-80/50E-131 | 440 | 80 | 50 | 80.43 | 43.41 |
| HSGL01-63/35E-131 | 200 | 63 | 35 | 50 | 34.5 |
| HSGL01-63/35E-131 | 300 | 63 | 35 | 50 | 34.5 |
| HSGL01-50/28E-131 | 140 | 50 | 28 | 31.42 | 21.56 |
Features:
Low friction hydraulic steering
Easy installation on single and dual rudders
Supplied with bleeder fittings
Heavy duty brass construction
hydraulic cylinder used for marine steering factory, welcome to contact us at any time!
QC:
1. Cylinder products from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ TS 16949:2009)
2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding quality of the seal parts
