Sanitation Vehicle Garbage Truck Hydraulic Cylinders Double Earring Road Sweeper
Sanitation Vehicle Garbage Truck Hydraulic Cylinders Double Earring Road Sweeper
Product Advantage:
| Gland | High Grade Ductile Iron |
| Tube | Cold Drawn Honed Tubling |
| Piston | High Grade Ductile Iron |
| Piston Rod | Chromed C45# |
| Piston Seal | Urethane Seal |
| End Cap | Casting Seel |
| Mounting Style | Pins And Clips Indcluded |
| Gland Seals | Ployurethane U-cup |
| Rod Wiper | Urethane Snap In |
| Paint Color | Semi-Gloss Black, Grey, Red ,Can be customized as per your requirements |

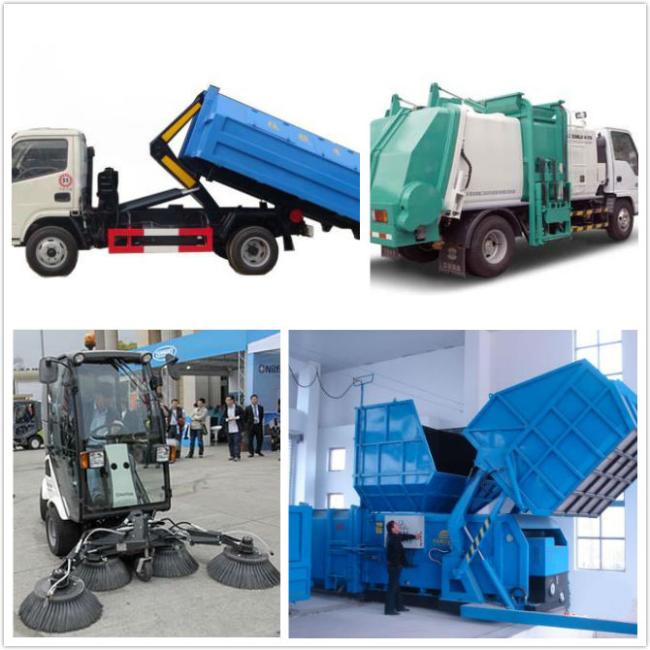

Sanitation vehicles hydraulic cylinder are widely used in various types of compression sanitation garbage truck hydraulic system. This series of cylinders include push plate cylinder, sliding cylinder, scraper cylinder, lifting cylinder and so on. Push-push cylinder which is a double-acting multi-stage telescopic sleeve hydraulic cylinder, out of the oil ports are located in the rod end. The series cylinder structure is reasonable, reliable, easy assembly and disassembly, easy maintenance. Another special requirements according to user needs and technical parameters for special design.
Hydraulic Cylinder for Sanitation Vehicle / Garbage Truck / Road sweeper
| Type | Bore (mm) | Rod diameter (mm) | Stroke (mm) | Working pressure (MPa) |
| Pushing cylinder | 160 | 140 | 2415 | 16 |
| 125 | 105 | 2415 | 16 | |
| 90 | 70 | 2415 | 16 | |
| Sliding cylinder | 80 | 50 | 1045 | 21 |
| Scraping cylinder | 90 | 45 | 430 | 16 |
| Turning barrel cylinder | 63 | 35 | 250 | 16 |
| Lifting cylinder | 90 | 45 | 420 | 16 |
The special designs are also available according to the user requirement and special technical parameters.
I can quote you lowest price with the best quality, and fast delivery time.
We are the factory, welcome you visit our factory. Thank you.
Hope we can do the hardness business and make the good friend ship.
