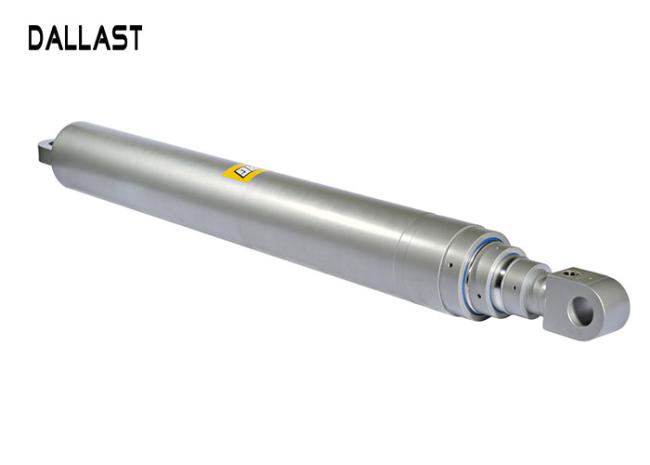

Telescopic Chromed American Dump Truck Hydraulic Cylinder for Agricultural Machinery
Telescopic Chromed Dump Truck American Hydraulic Cylinder for Agricultural Machinery
Specifications:
1. Good craft
2. Use high technic to design
3. Well ratio of quality and price
4. Short delivery time
Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.
Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.
Product description:
FC series telescopic cylinder are suitable for the machine which requires long stroke and short length.
1. Including single acting and double acting.
2. Small size and high intensity
3. Sealing systems seal rings of NOK from Japan and Parker from the US that have good lifetime.
4. Cylinder body, the thickness of cylinder body and flange can be changed, the cylinder inner surfaces manufactured as per appropriate intensity and dimensions
have excellent roughness and rigidity and better wearing capacity after roll finishing. They have 100% nondestructive test.
5.Piston rod high frequency quenching followed by hard chrome plating to improve rust proofing and wear and scar resisting performance
Main Parameters:
| Product | Single Acting Hydraulic Cylinder |
| Stroke for oil cylinders | 50mm-15000mm |
| Inside Cylinder Tube Dia. | 40 - 1000 mm (1.5 - 40 inch) |
| Liner material | Copper (prolongs the life cycle of cylinder) |
| Hydraulic cylinder tube material | Carbon steel, Alloy steel, Stainless steel |
| Piston Rod Dia | 12 - 500 mm (1/2 - 20 inch) Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra |
| Chome Plated | Cr, Ni or Ceramic |
| Design Pressure | Max 700 bar (10150 PSI) |
| Weight | Max 60 tons |
| Valves | SUN (USA),or famous Chinese brand with same quality to PARKER |
| Seals Type | PARKER (USA), MERKEL (Germany) or NOK (Japan) |
| Liner material | Copper (prolongs the life cycle of cylinder) |
| Bearings | LONGXI (China) or SKF |
| Painting | Follow with customer requirement or 3-coat marine painting |
| Certificate | DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS |
| Application | Engineering machinery (Excavator/ Forklift/ Cranes/ Tipper truck,etc), mine, metallurgy, shipping, water conservancy, etc. |
FAQ:
Q1: What's the brand name of your products?
A: Generally, we use our own brand "Dallast", OEM is also available as required.
Q2: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q3: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q4: What about the quality feedback of your products?
A: Guarantee the quality from the raw material. We have cold drawing production line and nickel-chrome electroplating production line, so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder.
Q5: Is the sample free?
A: Yes. In our acceptable range, we can offer a sample by charging freight. And we will return the fee after you place bulk order.
Q6: How about the delivery time?
A: Generally, it's 15-25 days after payment.
Q7: What 's the after-service?
A: If the quality can’t meet your requirements, we will pay all your lost and offer technical support to solve your problem!
Product Show:
