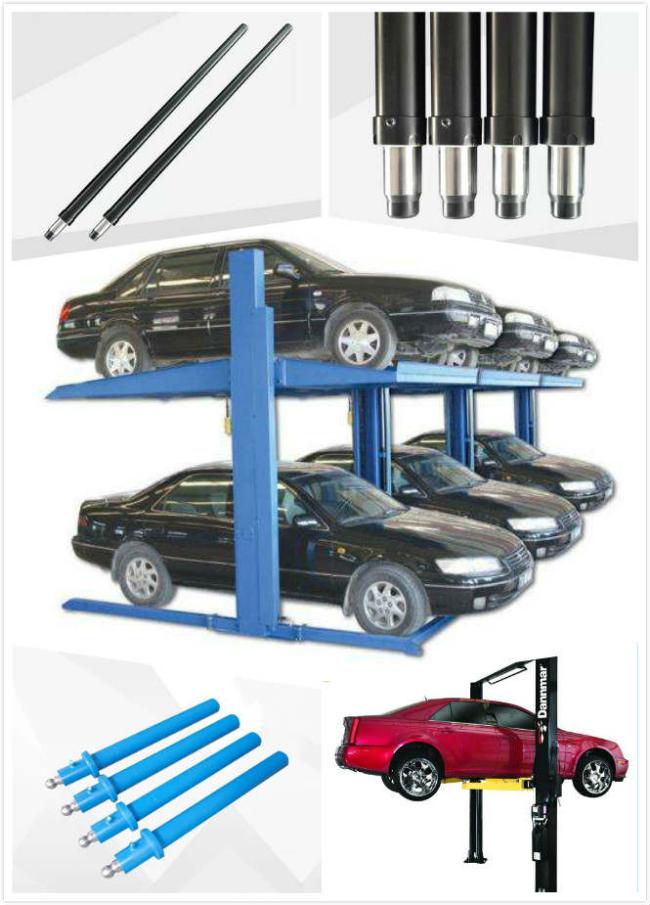

2 Post Auto Car Parking Lift Industrial Hydraulic Cylinder RAM for Elevator Car Hoist
2 Post Auto Car Parking Lift Hydraulic Cylinder RAM for Elevator Car Hoist
Products Discription:
- This cylinder is ram type
- With simple structure, this cylinder is very reliable.
- The ram cylinder is closed and will not pollute the hydraulic oil caused by atmosphere. Even in very bad environment, you can use it.
Cylinder Advantages:
- Professional manufacturer& supplier of Hydraulic Cylinders
- Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
- Experience in export North America, Australia, Asia, Middle East, Africa;
- Hydraulic Cylinders can be Make according to client's requirements;
- The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
| Model | Mounting Distance (mm) |
Stroke (mm) |
Bore Diameter (mm) |
Rod Diameter (mm) |
Working Pressure (MPa) |
Oil Port Size |
| HG-75/25*2140 | 2387 | 2140 | 75 | 25 | 18 | G3/8" |
| HSG-63/28*560 | 920 | 560 | 63 | 28 | 16 | M18*1.5 |
| 2TG-55*2140 | 240 | 2140 | 60/45 | 55/40 | 16 | M14*1.5 |
| 2TG-55*2030 | 260 | 2030 | 60/45 | 55/40 | 16 | M14*1.5 |
| HSG-3/1*70 | 2041.5 | 1778.5 | 76.2 | 25.4 | 20 | NPT3/8" |
| HG-2/1.5*69 | 90.5 | 1753 | 50.8 | 38.1 | 25 | NPT1/4" |
| HG-3.5/1.25*70 | 2066.8 | 1778 | 88.9 | 31.75 | 20 | NPT3/8" |
FAQ:
1. are you a manufacturer?
Yes, we focus on the hydraulic cylinder.
We are professional manufacturer in hydraulic cylinder. We will provide competitive price.
2. Can I get samples to test before starting cooperation?
Of course.We would like produce sample hydraulic cylinder for your confirmation.
3. Have you been exported to overseas?
We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.
4. How to ship your product?
We are transported by sea, by air or by international express.According to your needs.
5. Do you support OEM service?
Yes. OEM service is available.
we can make products according to your requirements. Please kindly send us your specifications and drawings.
6. Is your design reasonable?
We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect performance.
7. How to choose which model hydraulic cylinder to buy?
Please kindly send us your drawings, models or providing us your parameters and
specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.
8. What is your warranty?
Our products are all available for one year free warranty and product lifetime consulting service.
9. How long it will take from ordering to delivering?
It depends on the ordering quantity. Generally, we will take 15-30days. If there are any changes, we will inform you in time.
