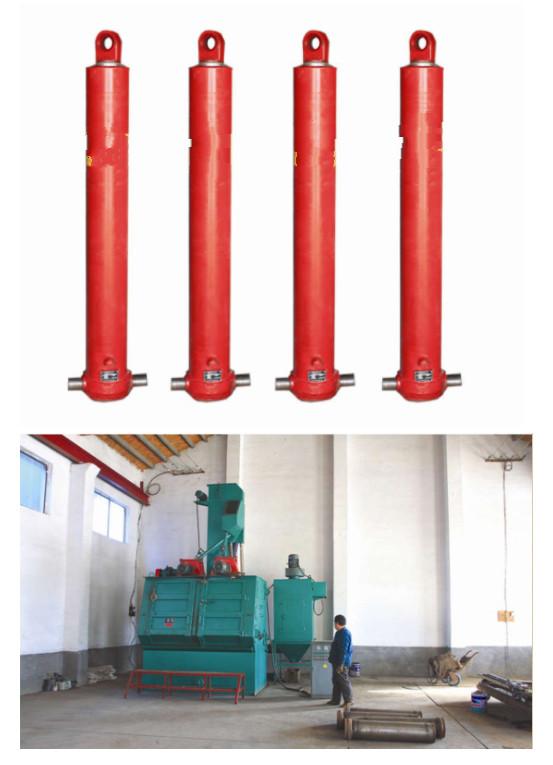

FEE Telescopic Hydraulic Oil Cylinder RAM Single Acting for Dump Tipper Truck
FEE Telescopic Hydraulic Oil Cylinder RAM Used for Dump Tipper Truck
| Stage | MODEL NO. |
STROKE mm |
Mounting Distance mm | Closed length mm | Top EYE .Diamether mm | Top EYE .Width mm |
| 3 Stage | 3TG-107-2055 | 2055 | 1054 | 1110 | 50.8 | 42 |
| 3TG-107-2175 | 2175 | 1104 | 1160 | 50.8 | 42 | |
| 3TG-107-2715 | 2715 | 1304 | 1360 | 50.8 | 42 | |
| 3TG-126-2175 | 2175 | 1129 | 1185 | 50.8 | 42 | |
| 3TG-126-2715 | 2715 | 1329 | 1385 | 50.8 | 42 | |
| 3TG-126-3240 | 3240 | 1479 | 1535 | 50.8 | 42 | |
| 3TG-126-3840 | 3840 | 1679 | 1735 | 50.8 | 42 | |
| 3TG-145-2715 | 2715 | 1304 | 1360 | 50.8 | 42 | |
| 4 Stage | 4TG-145-3620 | 3620 | 1308 | 1364 | 50.8 | 42 |
| 4TG-145-4320 | 4320 | 1458 | 1514 | 50.8 | 42 | |
| 4TG-165-3920 | 3920 | 1358 | 1414 | 50.8 | 42 | |
| 4TG-165-4320 | 4320 | 1458 | 1514 | 50.8 | 42 | |
| 4TG-165-4520 | 4520 | 1508 | 1564 | 50.8 | 42 | |
| 5 Stage | 5TG-165-4525 | 4525 | 1312 | 1368 | 50.8 | 42 |
| 5TG-165-5650 | 5650 | 1512 | 1568 | 50.8 | 42 | |
| 5TG-165-6150 | 6150 | 1612 | 1668 | 50.8 | 42 | |
| 5TG-187-5400 | 5400 | 1462 | 1518 | 50.8 | 42 | |
| 5TG-187-5650 | 5650 | 1512 | 1568 | 50.8 | 42 | |
| 5TG-187-5900 | 5900 | 1562 | 1618 | 50.8 | 42 | |
| 5TG-187-6150 | 6150 | 1612 | 1668 | 50.8 | 42 | |
| 5TG-187-6900 | 6900 | 1762 | 1818 | 50.8 | 42 |
Quality Control:
1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection
Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.
Guarantee&After-sale Service:
1. 24 hours technical support through email
2. Goods will be delivered safely on time
3. One year guarantee after destination port arrival
4. Life long time follow up service
Features:
| 1. Multistage telescopic long stroke hydraulic cylinder applies to long stroke lifting operation. | 2. Surface corrosion treatment, bright color, not east to rust. |
| 3. High strength alloy steel with high grade heat treatment, produced by imported CNC lathe, drilling machine and grinding machine. | 4. Import sealing parts, not easy to wear after continuous working. |
| 5. Dust ring reduces contamination, extending cylinder life. | 6. Single acting, load return. |
| 7. R2 3/8 coupler and dust cap included on all models. | 8. Flat saddle is standard, and tilting saddle is available. |
