Weld on Industrial Hydraulic Cylinder Piston Design Double Acting Industrial Equipment
Weld on Hydraulic Cylinder Piston Design Double Acting Industrial Equipment
Product Description:
Double Acting Hydraulic Cylinder offered come in durable construction finish and provides for superior corrosion resistance performance. As double acting hydraulic cylinders, these mainly find use in vehicles, engineering machinery, lifting and conveying machinery, mining machinery and others. Some of its features include support of optional hydraulic lock; cushioned cylinder structure finish; based on advanced hydraulic power support; steel body material finish; comes with standard shaft diameter; can handle pressure from 2500PSI to 4000PSI.
Hydraulic Cylinder Solutions for all Applications:
Our industrial hydraulic cylinders are built to work in the toughest conditions. Developing solutions in partnership with our customers has allowed us to continually create and expand our portfolio of hydraulic cylinders that meet global safety standards for any environment you work in. DALLAST has rendered hydraulics even more capable, from mill-type to tie rod hydraulic cylinders; we have your hydraulic cylinder for safe and reliable lifting. This gives you smarter, reliable cost-optimized solutions with an extended lifecycle and intelligent components.
FAQ:
Q1. What are the same aspects of your cylinder with Hyva cylinder?
1. Same inside structure.
2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's.
Q2. Compared with Hyva cylinder, what are your cylinder advantages?
1. Tubes are chrome plated.
2. Tubes are quenched and tempered.
3. Good quality yet lower price.
Parameter:
Bore: Φ45mm, Rod: Φ25mm, Stroke: Φ95.25mm
Working pressure: 16Mpa
Test pressure: 24Mpa
Temperature: -10℃- +80℃
Transmission media: mineral hydraulic oil
Seals: Parker
|
Weld on Hydraulic Cylinder Piston Design Double Acting Industrial Equipment
|
|
| Mounting position | Optional |
| Bore size | Several bore sizes and in varying strokes; Many of these sizes are available |
| Stroke | depend on the application |
| Operating pressures |
Nominal pressure:25 MPa (250 bar 3625 psi) Static test pressure: 37 MPa (370 bar 5440 psi) Cylinders are designed for normal or high pressure |
| Operating temperature | -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen. |
| Hydraulic fluid | Custom |
| Rod diameter | Larger diameters vary between 50,000 and 75,000 PSI minimum yield material |
| Rod material | All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. |
| Seal | Parker/Nok/Hallite etc. |
How is pressure calculated in a hydraulic cylinder?
If you are calculating the pressure you are probably at the design stage of the development of an hydraulic mechanism. You must have already determined, by one means or another, the force acting on the mechanism. Since pressure is, by definition, force divided by area, if the force in Newtons divided by the area of the piston in the hydraulic cylinder being considered, in square millimetres. this will be the pressure required (in Megapascals) to resist that force. It would then be normal for a pressure in excess of that determined to cover contingencies or other known requirements.
Good Choice for Our Hydraulic Cylinder:
1. With Rolling technology, the cylinders are straighter, the surface is harder, and its quality is more durable.
2. All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing, making the cylinder harder, wearable and acid-proof.
3. Using imported materials for seal kits.
4. The structure kits are made by high-strength Manganese plate.
5. Advanced surface treatment:
A. Environmental automatically pipeline painting.
B. Cleaning with automatic washing machine.
C. Assembling in seal clean workshop.

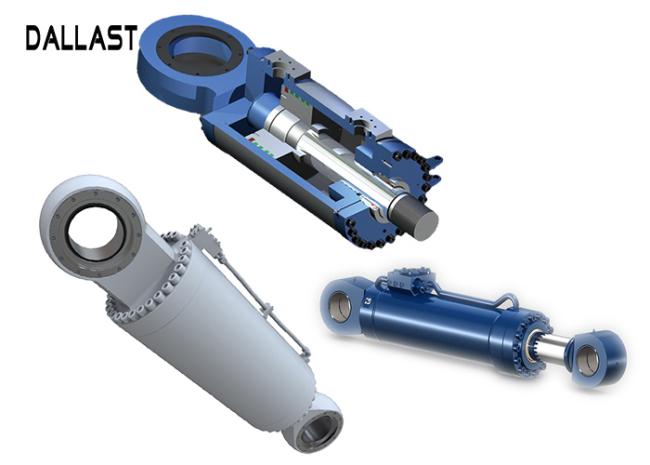

Product Show :
