Long Stroke Single Acting Hydraulic Cylinder 3 4 5 Stage Lifting 13 - 90 Ton Dump Truck Tipper

Name: Long Stroke Single Acting Hydraulic Cylinder 3 4 5 Stage Lifting 13 - 90 Ton Dump Truck Tipper
Brand: Shenzhen Dallast Technology Co., Ltd.

Price Negotiable

Price: Negotation

MOQ: 1 piece

Delivery Time: 15-25 days

Brand: Dallast

Product Description

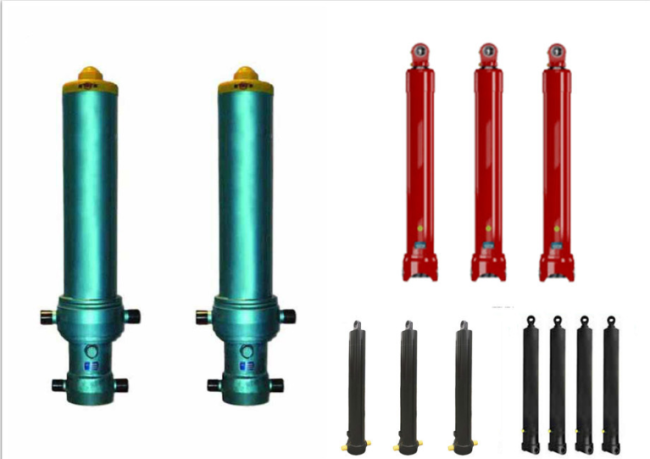

3 4 5 Stage Lifting 13 - 90 Ton Dump Truck Tipper Long Stroke Hydraulic Cylinder

Product description

HS Code	8412210000

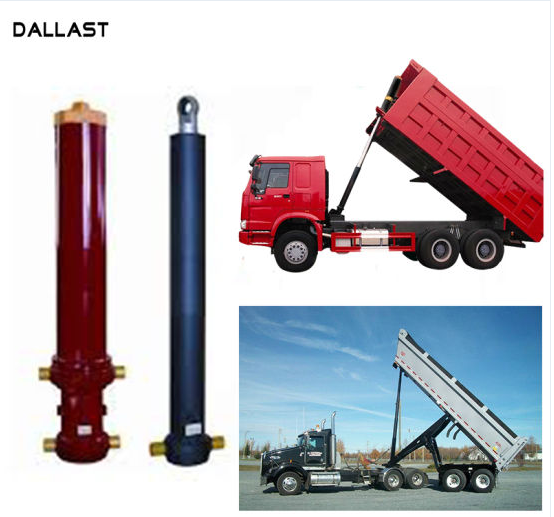

Application	Dump truck, Tipper, Trailer
Material	Alloy steel, Carbon steel, 27SiMn
Seal	Hallite, SKF, NOK, Guarnitec, Parker
Coating	Chrome plated
Temperature	-30ºC~100ºC
Chrome Thickness	25-30um
Honed tube	20-2000mm, Heat treatment, honing, rolling
Piston rod	10-1500mm, tempering, plated nickel, Chrome or ceramic
Hydraulic pressure	16MPa-32MPa
Stroke	2000mm-11000mm
Color	Red black blue gray, can custom according request
Mounting Type	Earring-trunnion, double trunnion, double earring (eye end)
Plunger	20#, 45# steel with high frequency quenching
Certification	ISO9001-2009, TS16949
Package	Shrink film, pallet, plywood case and carton
Warranty	One year after shipping arrival
Payment terms	T/T, L/C, West Union, Paypal
Delivery time	20- 30 days after down payment
We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters: Bore diameter; Rod diameter; Stroke; Working pressure; Front and back end mount type; Using frequency; Work Environment; Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample

FC type
MODEL NO.	Largest Stage Diameter	Stroke	The largest sleeve OD	Mounting distance
FC-3-110-3205	110	3205	168	343
FC-3-110-3460	110	3460	168	343
FC-3-129-2980	129	2980	218	343
FC-3-129-3205	129	3205	218	343
FC-3-129-3460	129	3460	218	343
FC-3-129-3880	129	3880	218	343
FC-3-129-4270	129	4270	218	343
FC-4-129-4280	129	4280	218	343
FC-4-129-4280	129	4280	218	343
FC-4-129-5180	129	5180	218	343
FC-4-149-3680	149	3680	218	343
FC-4-149-3980	149	3980	218	343
FC-4-149-4280	149	4280	244	343
FC-4-149-4620	149	4620	244	343
FC-4-149-4940	149	4940	244	343
FC-4-149-5180	149	5180	244	343
FC-4-149-5460	149	5460	244	343
FC-4-169-4280	169	4280	244	343
FC-4-169-4620	169	4620	244	343
FC-4-169-4940	169	4940	244	343
FC-4-169-5180	169	5180	244	343
FC-4-169-5460	169	5460	244	343
FC-5-169-5355	169	5355	244	343
FC-5-169-5780	169	5780	244	343
FC-5-169-6180	169	6180	244	343
FC-5-169-6830	169	6830	244	343
FC-5-169-7130	169	7130	244	343
FC-5-169-7630	169	7630	244	343
FC-5-169-8130	169	8130	244	343
FC-5-169-9030	169	9030	244	343
FC-5-169-9530	169	9530	244	343

FE type
Model	Stage	Largest Stage Diameter mm	Stroke mm	Mounting distance mm
FE-3-110-3205	3	110	3205	1449
FE-3-110-3460	3	110	3460	1609
FE-3-129-3460	3	129	3460	1449
FE-3-129-3880	3	129	3880	1609
FE-3-149-2900	3	149	2900	1320
FE-3-149-3200	3	149	3200	1420
FE-3-149-3500	3	149	3500	1520
FE-3-149-3880	3	149	3880	1644
FE-4-149-4280	4	149	4280	1450
FE-4-149-4940	4	149	4940	1529
FE-4-149-4620	4	149	4620	1484
FE-4-169-4280	4	169	4280	1394
FE-4-169-4450	4	169	4450	1437
FE-4-169-4620	4	169	4620	1479
FE-4-169-4940	4	169	4940	1529
FE-4-169-5000	4	169	5000	1574
FE-4-169-5180	4	169	5180	1604
FE-5-169-5355	5	169	5355	1394
FE-5-169-5780	5	169	5780	1559
FE-5-169-6180	5	169	6180	1527
FE-5-169-6480	5	169	6480	1604
FE-5-169-6830	5	169	6830	1674
FE-5-169-7130	5	169	7130	1769
FE-5-191-6180	5	191	6180	1527
FE-5-191-9030	5	191	9030	2177
FE-6-191-7420	6	191	7420	1677
FE-5-214-6830	5	214	6830	1662
FE-5-214-7130	5	214	7130	1722
