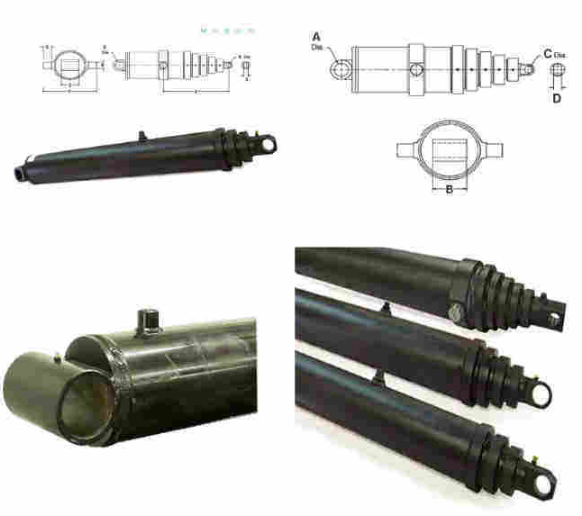

Telescopic Single Acting Telescopic Hydraulic Cylinders Long Stroke Pin Eye Distance 20mm
Telescopic Hydraulic Cylinders Long Stroke Single Acting Pin Eye Pin Distance 20 mm
Introduction
A. Working pressure: 16-35MPa
B. Stroke: long stroke
C. Lifting force: 127~609KN
D. Seal Type: Parker, NOK, Hallite or as customer's requirement
E. Piston Rod: Chrome or nickel plated, ground & polished piston rod
F. Mounting alternatives include trunnion mount, clevis, pineyes, or lugs with spherical bearings
G. Custom options for ports and integrated valves
H. Diverse preferences for seals due to temperature or heavy duty usage
I. Extensive pressure testing
J. Finished cylinder is sandblasted and painted to customer specifications
K. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.
L. Most telescopic cylinders are single acting (push).
| Parker | Model No. | First Stage Diameter | Stroke | Closed Length | Open Length |
| S53DC-66-72 | 3TG F5*72 | 5" 127 | 72"(1829mm) | 37.19" (945mm) | 109.19" (2773mm) |
| S53DC-66-84 | 3TG F5*84 | 5'' 127 | 84" (2134mm) | 41.19" (1046mm) | 125.19" (3180mm) |
| S53DC-65-107 | 3TG F5*107 | 5" 127 | 107.56" (2732mm) | 48.38" (1229mm) | 155.94" (3961mm) |
| S53DC-65-126 | 3TG F5*126 | 5" 127 | 126.63" (3216mm) | 54.56" (1386mm) | 181.19" (4602mm) |
| S63DC-101-86 | 3TG F6*86 | 6" 152.4 | 86.75" (2203mm) | 40.88" (1038mm) | 127.63" (3241mm) |
| S63DC-101-104 | 3TG F6*104 | 6" 152.4 | 103.94" (2640mm) | 47" (1194mm) | 150.94" (3834mm) |
| S63DC-101-107 | 3TG F6*107 | 6" 152.4 | 107.56" (2732mm) | 48.38" (1289mm) | 155.94" (3961mm) |
| S63DC-97-111 | 3TG F6*111 | 6'' 152.4 | 111" (2819mm) | 49.94" (1268mm) | 160.94" (4087mm) |
| S63DC-102-120 | 3TG F6*120 | 6'' 152.4 | 120" (3048mm) | 53.5" (1359mm) | 173.5" (4407mm) |
| S63DC-97-123 | 3TG F6*123 | 6'' 152.4 | 123" (3124mm) | 54.94" (1395mm) | 177.94" (4519mm) |
| S63DC-102-126 | 3TG F6*126 | 6'' 152.4 | 126.31"(3208mm) | 54.56" (1386mm) | 180.87" (4594mm) |
| S63DC-101-140 | 3TG F6*140 | 6'' 152.4 | 140.25" (3562mm) | 59.81" (1519mm) | 200.06" (5081mm) |
| S64DC-12-135 | 4TG F6*135 | 6'' 152.4 | 135" (3429mm) | 47.19" (1199mm) | 182.19" (4628mm) |
| S64DC-14-156 | 4TG F6*156 | 6'' 152.4 | 156" (3962mm) | 53.62" (1362mm) | 209.62" (5324mm) |
| S73DC-66-110 | 3TG F7*110 | 7" 177.8 | 110.63" (2810mm) | 50.06" (1271mm) | 160.69" (4081mm) |
| S73DC-66-120 | 3TG F7*120 | 7" 177.8 | 120" (3048mm) | 53.12" (1349mm) | 173.12" (4397mm) |
| S73DC-66-124 | 3TG F7*124 | 7" 177.8 | 124.88" (3172mm) | 54.81" (1392mm) | 179.69" (4564mm) |
| S73DC-66-129 | 3TG F7*129 | 7" 177.8 | 129" (3277mm) | 56.5" (1435mm) | 185.5" (4712mm) |
| S73DC-66-140 | 3TG F7*140 | 7" 177.8 | 140.44" (3567mm) | 60" (1524mm) | 200.44" (5091mm) |
| S73DC-66-150 | 3TG F7*150 | 7" 177.8 | 150" (3810mm) | 63.50" (1613mm) | 213.50" (5423mm) |
| S74DC-74-120 | 4TG F7*120 | 7" 177.8 | 120" (3048mm) | 44.12" (1120mm) | 164.12" (4168mm) |
| S74DC-74-135 | 4TG F7*135 | 7" 177.8 | 135" (3429mm) | 48.43" (1230mm) | 183.44" (4659mm) |
| S74DC-74-140 | 4TG F7*140 | 7" 177.8 | 140" (3556mm) | 49.75" (1263mm) | 189.75" (4819mm) |
| S74DC-74-156 | 4TG F7*156 | 7" 177.8 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S74DC-74-161 | 4TG F7*161 | 7" 177.8 | 161.75" (4108mm) | 55.31" (1405) | 217.06" (5513mm) |
| S74DC-74-167 | 4TG F7*167 | 7" 177.8 | 167" (4242mm) | 56.38" (1432mm) | 223.38" (5674mm) |
| S74DC-74-180 | 4TG F7*180 | 7" 177.8 | 180" (4572mm) | 61.12" (1552mm) | 241.12" (6124mm) |
| S84DC-66-148 | 4TG F8*148 | 8" 203.2 | 147.75" (3753mm) | 51.50" (1308mm) | 199.25" (5061mm) |
| S84DC-66-156 | 4TG F8*156 | 8" 203.2 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S84DC-66-161 | 4TG F8*161 | 8" 203.2 | 160" (4064mm) | 55.75" (1416mm) | 215.75" (5480mm) |
| S84DC-66-170 | 4TG F8*170 | 8" 203.2 | 170" (4318mm) | 57.25" (1454mm) | 227.25" (5481mm) |
| S84DC-66-180 | 4TG F8*180 | 8" 203.2 | 180" (4572mm) | 59.75" (1518mm) | 239.75" (6090mm) |
| S85DC-66-170 | 5TG F8*170 | 8" 203.2 | 170" (4318mm) | 49.88" (1267mm) | 219.88" (5585mm) |
| S85DC-66-190 | 5TG F8*190 | 8" 203.2 | 189" (4800mm) | 54.62" (1387mm) | 243.62" (6188mm) |
| S85DC-66-220 | 5TG F8*220 | 8" 203.2 | 220" (5588mm) | 60" (1524mm) | 280" (7112mm) |
| S85DC-66-235 | 5TG F8*235 | 8" 203.2 | 234" (5944mm) | 64.62" (1641mm) | 298.62" (7585mm) |
| S85DC-66-250 | 5TG F8*250 | 8" 203.2 | 249" (6325mm) | 68.62" (1743mm) | 317.62" (8068mm) |
| S85DC-66-265 | 5TG F8*265 | 8" 203.2 | 265" (6731mm) | 71" (1803mm) | 336" (8534mm) |
| S85DC-66-285 | 5TG F8*285 | 8" 203.2 | 285" (7239mm) | 78.5" (1994mm) | 363.5" (9233mm) |
| S95DC-52-220 | 5TG F9*220 | 9" 228.6 | 218" (5537mm) | 62.44" (1586mm) | 280.44" (7123mm) |
| S95DC-52-235 | 5TG F9*235 | 9" 228.6 | 233" (5918mm) | 65.44" (1662mm) | 298.44" (7580mm) |
| S95DC-52-250 | 5TG F9*250 | 9" 228.6 | 248" (6299mm) | 68.44" (1738mm) | 316.44" (8037mm) |
| S95DC-52-265 | 5TG F9*265 | 9" 228.6 | 265" (6731mm) | 72.62" (1844mm) | 337.62" (8575mm) |
| S95DC-52-280 | 5TG F9*280 | 9" 228.6 | 280" (7112mm) | 72.62" (1997mm) | 358.62" (9109mm) |
| S95DC-52-300 | 5TG F9*300 | 9" 228.6 | 300" (7620mm) | 79" (2007mm) | 379" (9627mm) |
| S95DC-52-320 | 5TG F9*320 | 9" 228.6 | 320" (8128mm) | 83" (2108mm) | 403" (9628mm) |
| S95DC-52-340 | 5TG F9*340 | 9" 228.6 | 340" (8636mm) | 87" (2210mm) | 427" (10846mm) |
FAQ:
Q1. You are trading company or manufacturer?
----- We are manufacturer, major in hydraulic cylinders for 10 years OEM.
Q2. Can I order samples for testing?
----- Of course, our quality will satisfy you.
Q3. Can you accept OEM or ODM?
----- Of course, any kind and color can be provided according to your requirements.
Q4. Have you ever exported to foreign countries?
----- Yes
