Polycrystalline Silicon Folding Solar Panels 160W With Heavy Duty Padded Carry Bag
foldable solar panel 160W Poly folding solar panel with heavy duty padded carry bag
Product Information:
Solar Module
Rated Maximum Power 160W
Current at Pmax (lmp) 8.88A
Volatage at Pmax (Vmp) 17.4V
Short - Circuit Current(lsc) 9.56A
Open - Circuit Voltage( Voc) 21.4V
Max System V 1000V
Max Senes Fuse Rating 10A
Application Class A
Nominal Operating Cell Temp -40 ℃ TO+85℃

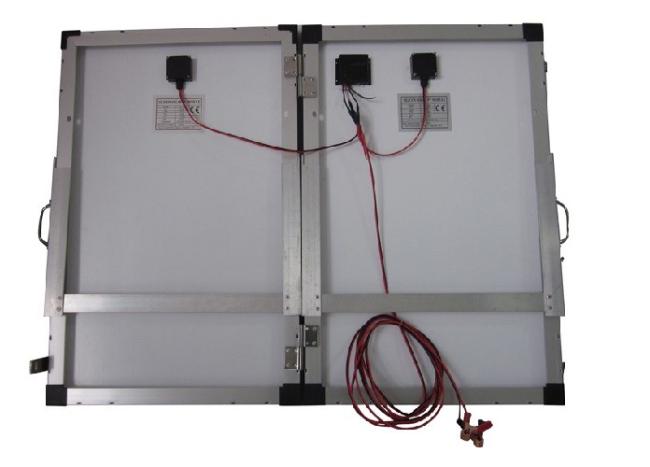

mono - crystalline folding solar panels with sturdy aluminum frame
heavy duty aluminumn handle * 2
heavy duty steel safety fasteners * 2
adjustable and strong support legs * 2 with anti-slip rubber feet
MPPT WATER-PROOF CONTROLLER 12V/24V with LED indications
5 - meter lead with MC4 male and female connectors and alligator clamps
connecting cable with connectors to 5 - meter lead
Hinge* 2
solar panel junction boxes* 2
plastic protecting corners* 8
heavy duty padded carry bag
Instruction manual
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Company Profile:
Continuously manufacturing PV modules since 2008, OLLIN-PV is one of the most experienced module
makers in the industry. More than 8 years of operating data support OLLIN-PV’s reputation as the best
overall quality, performance, and value for solar investors. The cutting-edge SN-series leads the industry
again in advanced design, construction, and performance. The SN-series is the ideal module for any system
size in any given environment. With the quality to last the lifetime of the PV system, OLLIN-PV’s SN-series
provides the confidence and assurance to each and every one of our customers.
FAQ
Q1 Are you a factory or trading company?
A Yes, we are factory, supplying OEM/ODM service.
Q2 Can you accept OEM service?
A Yes, we can. Qty is not the only standard , more qty, less cost.
Q3 How about your after sales-service?
A 1. Guarantee time: one year, but solar panel 10 years
2. Spare parts:1% spare parts will be shipped with your order.
Q4 How about your payment terms?
A We accept T/T, LC
Q5 What certification do you have?
A 1. CE,
2. According to your need , do the certification or report , if you have a big order.
Q6 How many day about delivery time?
A 1. Sample delivered in 3 - 5 days.
2. Order delivered in 15 - 20 days.
Q7 Which port shipping goods?
Ningbo port / shanghai port / yiwu port
