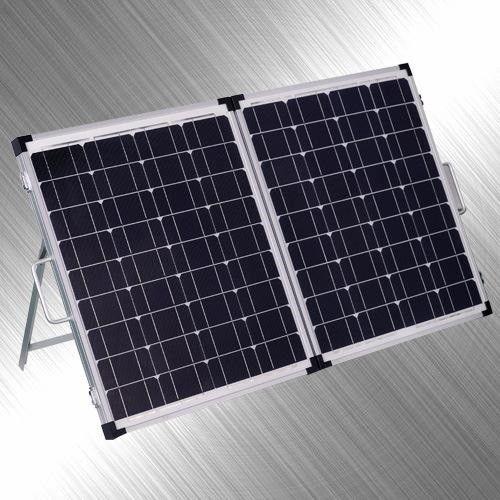

100 W Folding Solar Panels Anti - Reflective With Heavy Duty Padded Easy Carry Bag

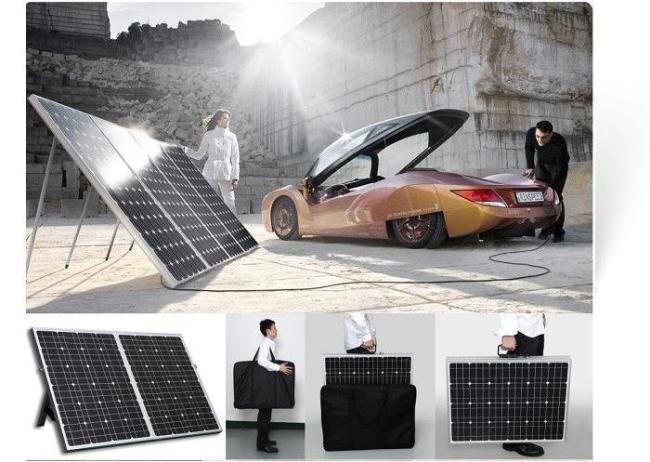

Mono folding solar panel 100Watt black color solar cells with heavy duty padded easy carry bag
Solar Module
1. Rated Maximum Power 100W
2. Current at Pmax (lmp) 5.58A
3. Volatage at Pmax (Vmp) 17.4V
4. Short- Circuit Current(lsc) 5.96A
5. Open- Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO+85℃
10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single bag.
11. Providing special design.
12. Module efficiency : 16%
13.Warranty : 12 years/90%,25 years/80%, guaranteed 3years material and workmanship
14. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
15. Excellent performance under low light conditions
16. Load test: module certified to wind and snow loads
17. Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
Electrical Characteristics
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
SOLAR PV SYSTEM
Solar PV system includes different components that should be selected according to your system type, site location and applications. The major components for solsr PV system are solar charge controller, inverter, battery bank, auxiliary energy sources and loads (appliances).
PV module - converts sunlight into DC electricity.
Solar charge controller - regulates the voltage and current coming from the PV panels going to battery and prevents battery overcharging and prolongs the battery life.
Inverter - converts DC output of PV panels or wind turbine into a clean AC current for AC appliances or fed back into grid line.Battery - stores energy for supplying to electrical appliances when there is a demand.Load - is electrical appliances that connected to solar PV system such as lights, radio, TV, computer, refrigerator, etc.
Auxiliary energy sources - is diesel generator or other renewable energy sources.
FAQ
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 315W with TUV,IEC61215/IEC61730,CEC,CE,PID,ISO
• What is the warranty of solar panels?
--- 5-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years
• Can you quote me the best price?
---We need more information about your demands, such as the power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
• How do I get solar panel from ollin and Where can I get further information?
--- Please visit our website and send us email or call us.
