Solar Energy Products High Power Solar Panels With Metal Handle And Metal Bracket

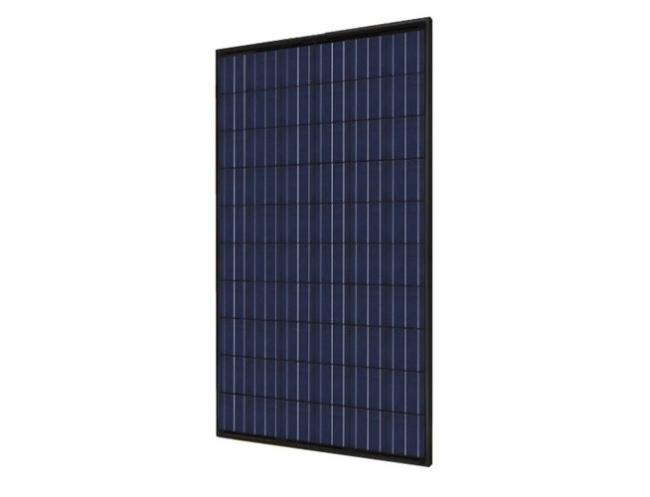

Yingli brand solar cells Black Solar PV Panels with metal Handle andMetal bracket
Structure of Solar Panel:
1. Front Material: 3.2MM low-iron toughened glass
2. Back Material: White TPTTPE
3. Bondable Barrier Film: EVA
4. Frame: Aluminum alloy plated with oxidation film
5. The warranty of a standard about 25 years/ 80% efficiency on maximum output
10 years / 90% efficiency on maximum and 5 years warranty on workmanship
6. Module size can be changed according to the customers' requirement
7. Standard testing conditions: Am1.5 25ºC 1000W/m2
Specifications:
| Module Type | OLPV250W | OLPV255W | OLPV260W | OLPV270W | OLPV280W |
| Maximum power | 250WM | 255WM | 260WM | 270WM | 280WM |
| Max power voltage | 36.54v | 36.88v | 36.9V | 36.88v | 36.9V |
| Max power current | 29.74V | 29.86V | 29.94V | 29.86V | 29.94V |
| Open circuit voltage | 8.96A | 9.2A | 9.35A | 9.72A | 9.99A |
| Short circuit current | 8.3A | 8.5A | 8.66A | 8.98A | 9.33A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
Applications
On-grid residential roof-tops
On-grid commercial/industrial roof-tops
Solar power plants
Off-grid system
Other on-grid applications
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
What is a PV system?
A PV system consists of all the equipment and materials needed to generate solar energy,
including solar panels (often called modules), a support structure, wiring, an inverter, a meter
and other equipment as required by a specific application. JUST-SOLAR's PV system for
commercial buildings, and ET Solar system for residential uses are examples of complete PV
systems.
