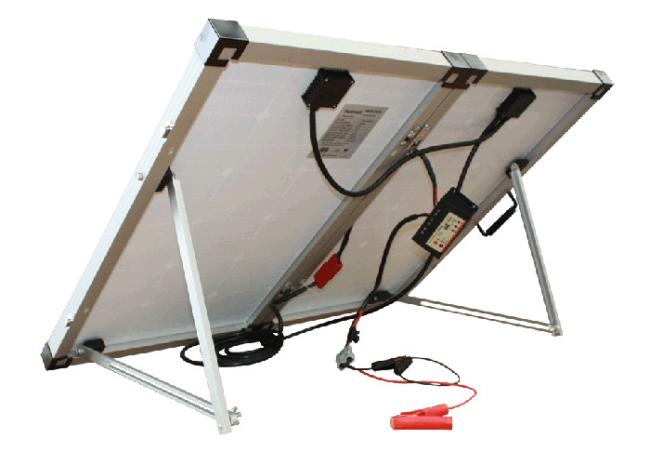

Black Portable Suitcase Solar Panels Heavy Duty Aluminum Frame And Leg
120Watt 12V Folding solar panel Foldable Monocrystalline Solar Suitcase for hiking camping and military use
Features:
ENHANCED EXTERNAL LOAD / IMPACT
Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)
Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)
Hail Impact : 30.7m/s (speed ball)
POWER ADVANTAGE
25-year, linear power warranty
> 97.5% nominal power during 1st year
Positive tolerance up to +5W
PID RESISTANCE
Enhanced potential induced degradation
FIRE SAFETY
UL1703 Fire Classification : Type 1, Type 2
ENVIRONMENT RESISTANCE
Suitable for extreme conditions
Resistant to high salt mist and ammonia
Parameters Table
| specifcation | |
| Rated power | 120W |
| Vop | 17.9V |
| Working current (Iop) | 6.66A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 540x1198x77mm (21.34*47.35*3.04in) & Size without Foldable 1080x1198x37mm(42.68*47.35*3.04in) |
| Weight (kgs) | 15.33kgs(33.8lbs) |
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Detailed Product Description
- Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single bag.
- Providing special design.
- Module efficiency : 16%
- Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
- Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
- Excellent performance under low light conditions
- Load test: module certified to wind and snow loads
- Anti-reflective,hydrophobic layer with light absorption and minimal surface dus
- Water proof IP22 design, protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water.
- 12/24V system automatic detect.
- PWM charging available,3-stage charging algorithm: impulse, bulk and float
- Protection:Reverse battery pole connection protection, Lightning protection
- Adjustable timer and light sensor
- small self consumption, 2mA at 12V system
| specification | ||
| Nominal output | 12V/24V | |
| Max charge current | 15A | |
| Max load current | 15A | |
| Max solar panel | 270Watt/540Watt | |
| Over discharge protection | 10.8V/21.6V | Adjustable |
| Reset | 12V/24V | Adjustable |
| Over charger protection | 14.5V/29V | |
| Float charge | 13.8V/27.6V | |
| Self consumption | 2mA/4mA | |
| Size | 110*59*33mm | |
| Operating temperature | -20 to +60℃ | |
| Net weight | 110g | |
Notes
1.Unfold the solar panel, expose the solar panel to south(inclination angle from 15-30 degree),
2.Connect the appliance to the load terminal of the connector
3.Conncet the male weather pack connector with alligator clips to the female weather pack connector from the controller
4. Clamp red and black alligator clips to positive and negative ends of the battery respectively.
