Black HMI Touch Screen Terminal Allen Bradley Panelview 550 2711-K5A10 Ser H
HMI Touch Screen AB Allen Bradley PanelView 550 2711-K5A10 Ser. H HMI FRN 4.48 DeviceNet
About 2711-K5A10
The obsolete Allen Bradley Panelview 550 2711-K5A10 is an operator terminal that allows the user to interface with their machine. This Panelview has a 5.5 in. Monochrome LCD blue mode Display.
This HMI allows the user to connect using Panelbuilder 32 software and a DeviceNet Communication and RS-232 Printer Port communication port with a 2711-NC13 communication cable(s). The user is able to control the unit using the Keypad(F1-F10) to input information and commands.
This unit is powered using 120 VAC power. This unit has the following internal memory: 170 KB application runtime. This unit has an internal backlight replacement part number of 2711-NL1. The approximate shipping weight and dimensions are 6 lbs and 14x11x8 inches. The most common Series are A,B,C,D,E,F,G,H and the most common firmware include 1.00-4.48.
QUICK DETAILS
- Brand :Allen Bradley (AB)
- Model : 2711-K5A10
- Place of Origin : USA
DESCRIPTION
- Touch Display Screen
- Operator Keypad Terminal
- PanelView
SPECIFITIONS
| art Number: | 2711-K5A10 |
|---|---|
| Product Line: | Panelview 550 |
| Display Size: | 5.5 in. |
| Display Color: | Monochrome LCD blue mode |
| Input Type: | Keypad(F1-F10) |
| Communication: | DeviceNet Communication and RS-232 Printer Port |
| Input Power: | 120 VAC |
| Software: | Panelbuilder 32 |
| Memory: | 170 KB application runtime |
| Backlight: | 2711-NL1 |
| Communication Cable: | 2711-NC13 |
| Shipping Weight: | 6 lbs |
| Shipping Dimensions: | 14x11x8 inches |
| Series: | A,B,C,D,E,F,G,H |
| Firmware: | 1.00-4.48 |

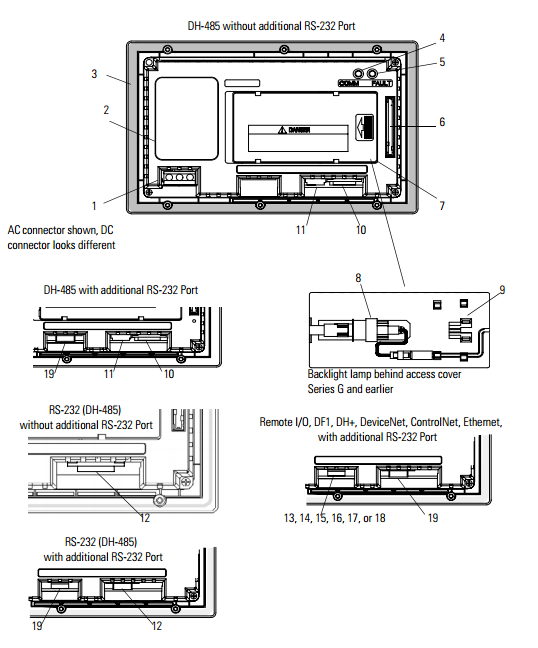

PanelView 550 Terminal Features
PanelView 550 Terminal Features (front)
| # | Feature | Description |
| 1 | Power Connection Terminals | Connects to external power source. |
| 2 | Nameplate Label | Provides product information. |
| 3 | Sealing Gasket | Seals the front of the terminal to an enclosure or panel. |
| 4 | COMM Status (Green) | Indicator Indicates when communication is occurring. |
| 5 | FAULT Status (Red) | Indicator Indicates firmware or hardware faults. |
| 6 | Memory Card Slot | Accepts a memory card which stores applications. |
| 7 | Access Cover | Provides access to the replaceable backlight lamp. |
| 2711P-T10C6A2 | 2711P-T10C6B1 | 2711P-T10C6B2 |
| 2711P-T10C6D1 | 2711P-T10C6D2 | 2711P-B12C15A1 |
| 2711P-B12C15A2 | 2711P-B12C15B1 | 2711P-B12C15B2 |
| 2711P-B12C15D1 | 2711P-B12C15D2 | 2711P-B12C4A1 |
| 2711P-B12C4A2 | 2711P-B12C4B1 | 2711P-B12C4B2 |
| 2711P-B12C4D1 | 2711P-B12C4D2 | 2711P-B12C6A1 |
