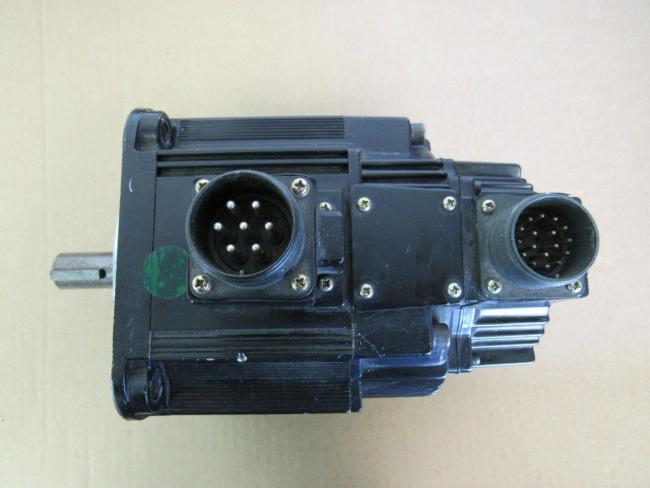

1PCS Industrial Servo Motor 200V 3.8A Servo motor SGMG-05A2ABC Yaskawa AC motor

Specifications

Current: 3.8A

Volatge: 200V
Power :1500W
Max speed: 3000rpm
Encoder: 17bit Absolute encoder
Load Inertia JL kg¡m2¢ 10−4: 0.026
Shaft: straight without key

Remove the blower section from the HVAC system. Remove the existing PSC motor from the blower section. Properly dispose of the motor and the run capacitor. The Evergreen IM motor does not require a run capacitor.

The frame size of the Evergreen IM motor is NEMA 48 frame. This is the most common frame size for indoor blower motors. If the original motor has the same frame size, the original mounting bracket should work on the Evergreen IM. The Evergreen IM requires a belly band style mounting bracket. The original mounting bracket can be used as long as it is belly band style with no special bolts or bearing mounts. Torsion flex brackets can be used on the ½ Hp motor only. They are not approved for the 1 Hp motor due to noise and longevity.

If the mounting bracket must be replaced, selecting one with the same mounting pattern on the blower housing will save drilling new holes in the blower section.

The belly band must fit the new motor properly. It should be tight enough to prevent the motor from shifting on start-up and not cover any vents. On ECM motors the belly band must not be placed over the motor control section.
