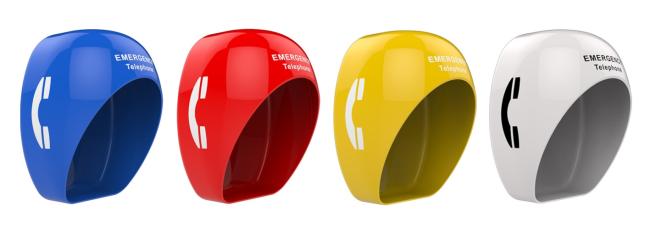

Industrial Acoustic Phone Booth, Corrosion Resistant Phone Hood

Corrosion Resistant Acoustic Phone Hood, Noise Reduction Industrial Phone Booth

PRODUCT FEATURES
• P9042 - Acoustic insulation: Noise Attenuation up to 15 dB
• Polyethylene plastic construction
• Polyethylene material ANSI/UL94 flammability approved
• Durable, lightweight, chemical resistant body

• Excellent low temperatures impact properties
• High performance polyurethane acoustic insulation liner, resistant to mildew and rot.
Fire retardant class "0" rating
• Completely maintenance free, UV and corrosion resistant, impervious to chemical attack
• Convenient writing shelf with drainage hubs to prevent water accumulation

• Can be used both indoors, outdoors and offshore
• Permanent black handset graphic molded into the booth surface
• Standard color - Yellow or customized
• Optional colors available upon request 1

SPECIFICATIONS
• Dimensions - 690*480*800 (mm)
• Weight - Approx 20 Kg
• Stock Colour - Yellow , Blue, Red, Others to order

• Outer Shell - General Purpose Resin continuous filament mat - Fire Resistance to BS476 Part 7
Class 1 Surface Spread of Flame
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3

• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness

ACCESSORIES and OPTIONS
Each Acoustic Booth can be fitted with a JR telephone suited for specific needs and requirements, and equipped with:
• LED Strobe Light
• Industrial speaker/ringer, speaker or ringer (up to 110 dB)

APPLICATIONS

This phone booths have been widely used in Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.

PACKAGE

Unit size: 690*480*800 (mm)

Wooden box size: 720*500*830 (mm)

Packaging materials: Pearl cotton, Wooden box

Gross weight: 43 KG

Net weight: 20 KG
