Anti Rust Elevator Emergency Phone Built In Ringer, Flush mounted Lift Help Point
Flush Mounted Emergency Telephones for Elevator, Vandal-proof Lift Help Point
The Flush Mounted Emergency Telephones are based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.
Ideas for Clean rooms, Schools, Streets, Public squares, Court houses, Rail platforms, Car-parks, Police stations, Hospitals, Gate entry, Firefighter, Industrial, Prisons, Jail, Guard Stations, Bank halls, ATM machines, Stadiums, inside and outside building, etc.
MAIN FEATURES
- Available in Analog, VoIP/SIP, and GSM/3G version
- Robust housing, constructed of stainless steel
Weather proof protection: IP55-IP65
- Vandal resistant metal button, Programmable for speed-dialing (PPT)
- Hands free operation
- Inductive Coupler Fitted as Standard for Hard of Hearing
- With the “one-touch call" function (by pre-setting up the target on the server), available for a full-duplex intercom
- Built-in Ringer, which provides a penetrating calling signal
- With a built-in 8 ohm & 0.5W speaker and a microphone, available for making hands-free calls
- In wall mounting, simple installation
- 4 X Tamper proof screws for mounting
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL PARAMETERS
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
PACKAGE

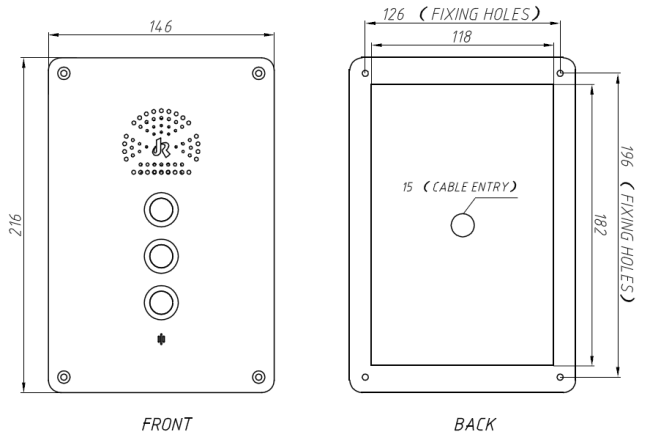

Unit size: 216 *146 *40 (mm)
Carton size: 340 *235 *165 ( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3 KG
Net weight: 2 KG
