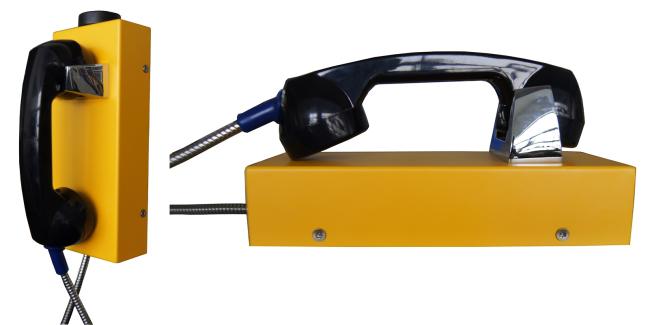

Robust GSM / 3G Vandal Resistant Telephone Multi Color For Public Service
Robust GSM / 3G Industrial Auto-dial Telephone for Public Service
This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analog, SIP/VoIP, GSM/3G phone
- Robust housing, constructed of cold rolled steel
- Vandal resistant handset and armored cord
- Weather protection IP54-IP65
- Tamper resistant fixings
- Simple installation
- Fast-fit terminal connection
- Non-volatile memory
- (Analog) Phone line powered
- (GSM/3G) Programmed by SMS, DC 12V powered
- (SIP) External power supply or PoE
- CE, FCC, RoHS, ISO9001 compliant
| SIP Version | ||
| Power Supply | PoE or 12V DC | |
| Power Consumption | -Idle:1.5W -Active:1.8W |
|
| SIP Protocol | SIP 2.0 (RFC3261) | |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 | |
| Communication Type | Full duplex | |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
|
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| 3G Version | ||
| Power Supply | 12V DC | |
| Power Consumption | -Idle:0.3W -Active: 1.5W |
|
| Communication Type | Full duplex | |
| Ringer volume | 90~95dB(A) at a distance of 1 m | |
| Program Method | Remote programming by SMS | |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE

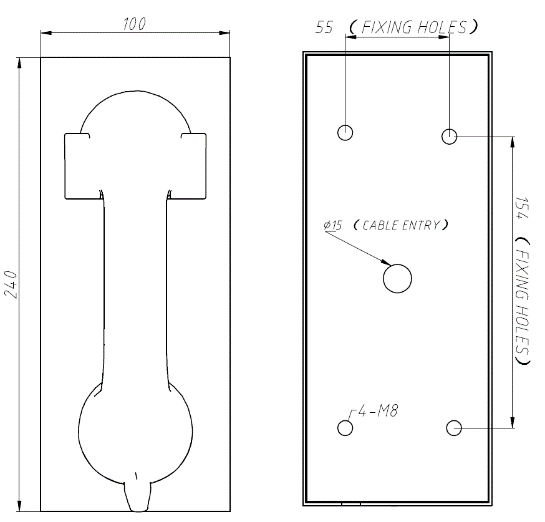

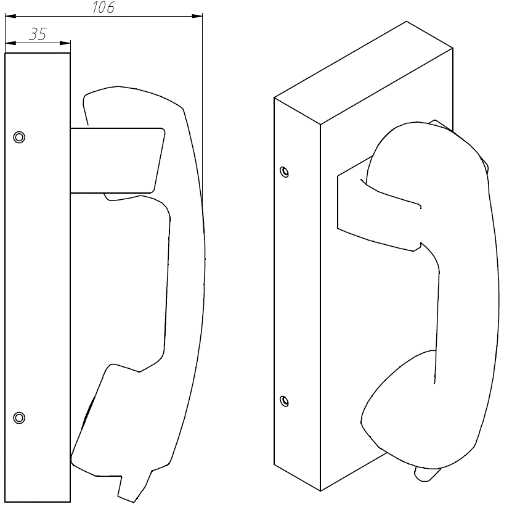

unit size: 240 *100 *106 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2 KG
Gross weight: 3 KG
